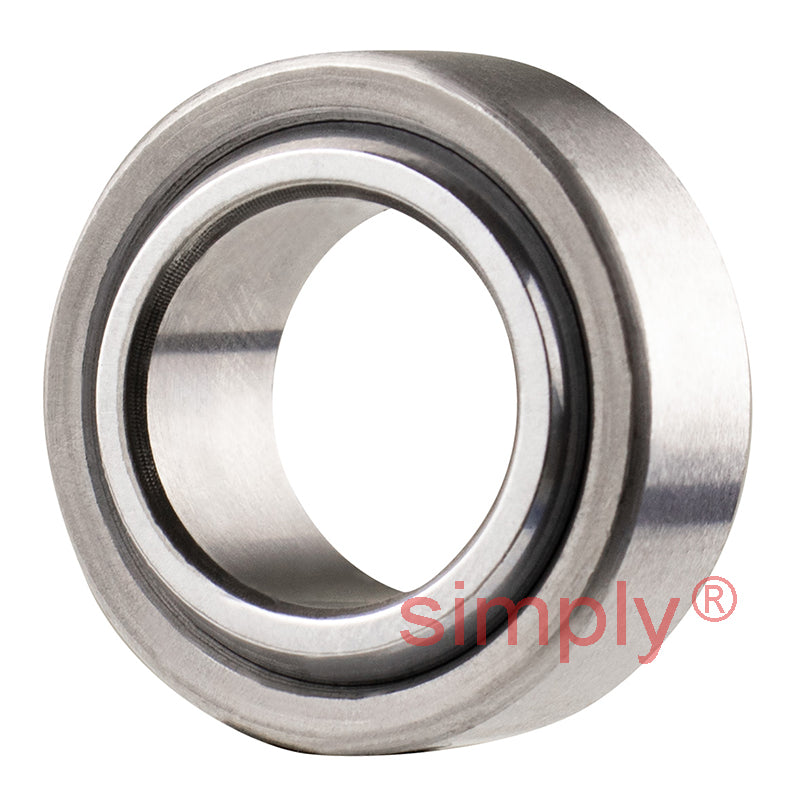

• GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm

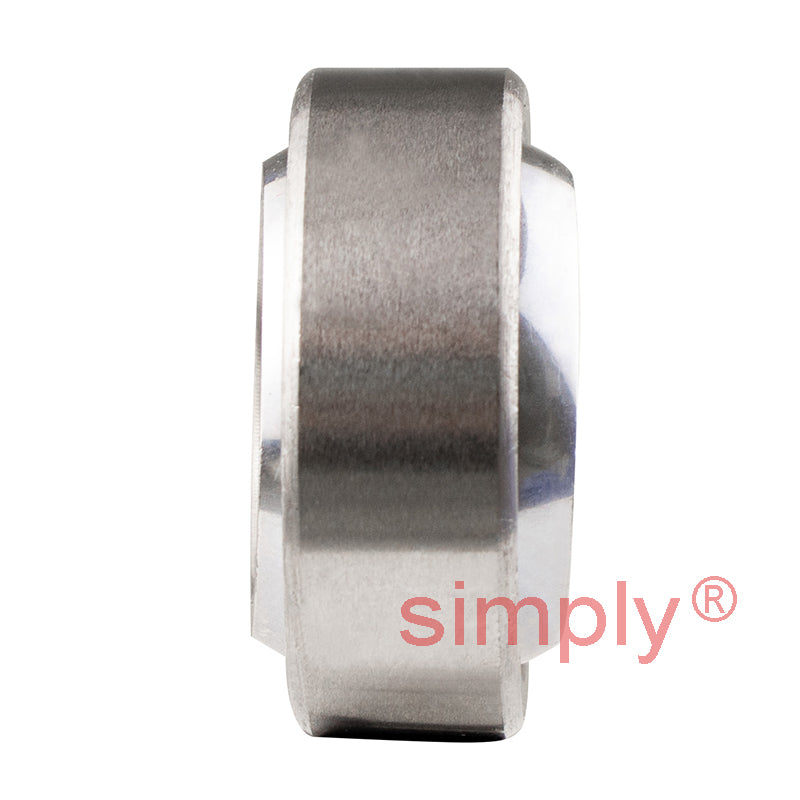

  • GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
  • GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
1 3

SKU: GE15UK-EU

GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm

GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
$8.13 ex VAT
$8.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $5.44
19+ $5.14
29+ $5.08
39+ $5.01
49+ $4.95
74+ $4.89
99+ $4.59
199+ $4.53
249+ $4.46
499+ $4.40
999+ $4.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GE..-UK Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
15mm
Outside Diameter:
26mm
Width:
12mm
Technical
d 15mm (Tolerance: 0/-0.008)
D 26mm (Tolerance: 0/-0.009)
B 12mm (Tolerance: 0/-0.12)
Radial internal clearance 0-0.04mm
C 9mm (Tolerance: 0/-0.24)
Da min 21mm
da max 18.4mm
dk 22mm
Chamfer dimension r1s min 0.3mm
Chamfer dimension r2s min 0.3mm
a 8°
Mass 0.027 kg
Basic dynamic load, radial Cr 17800 N
Basic static load, rating Cor 44600 N
