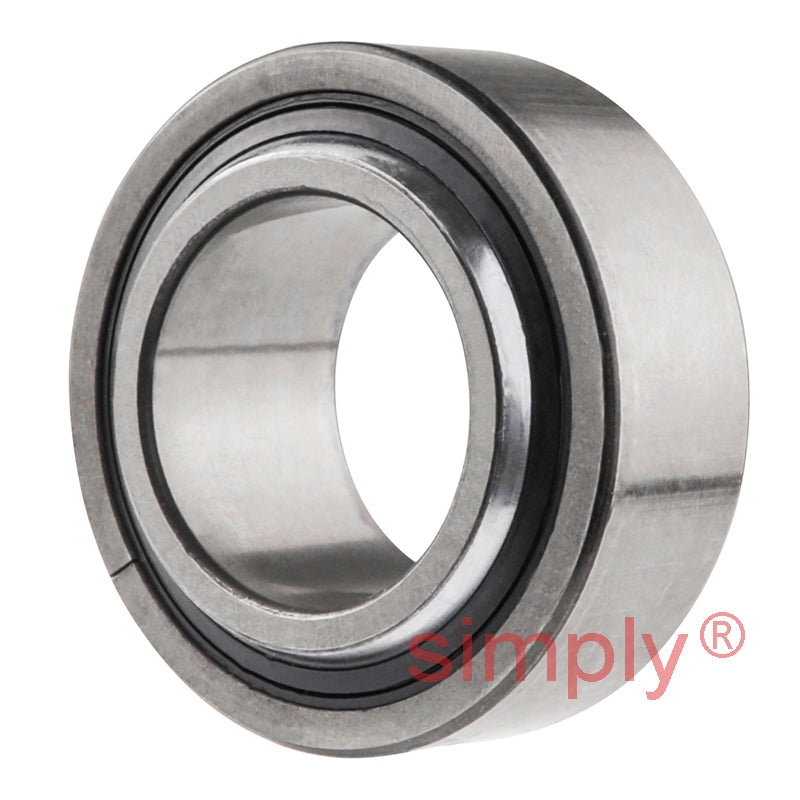

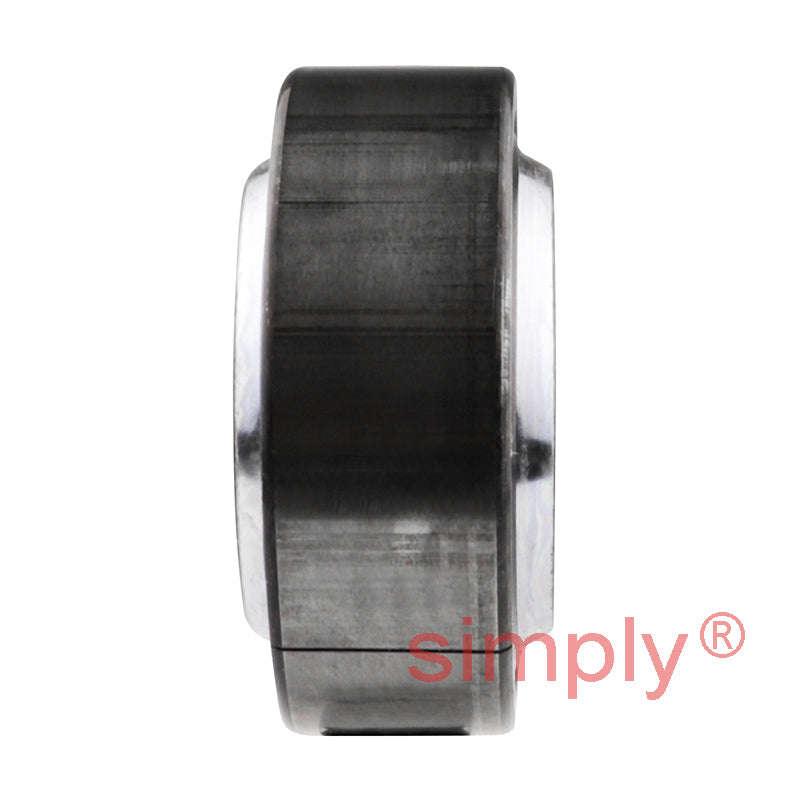

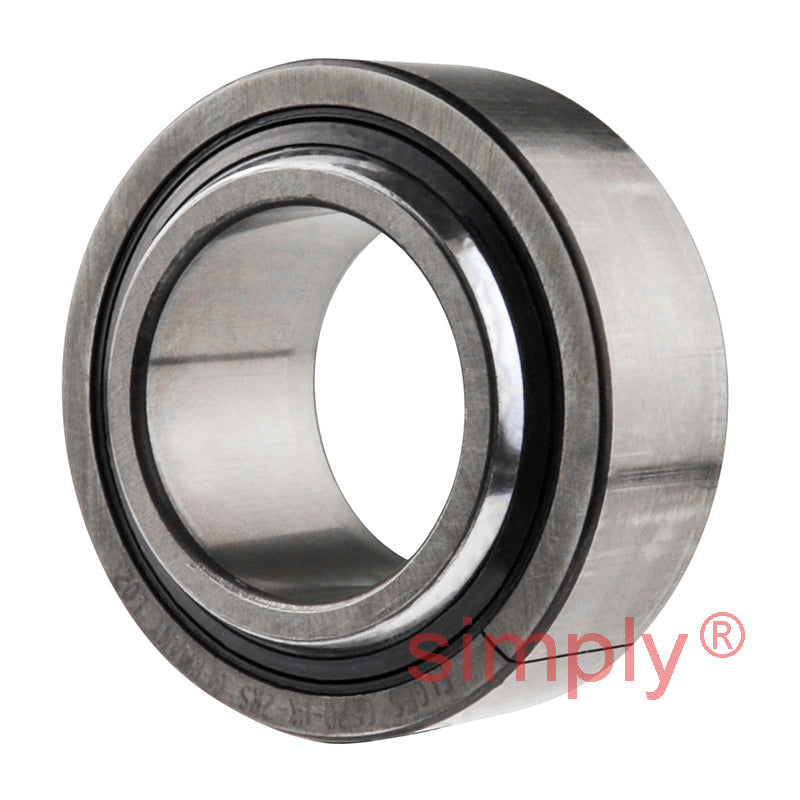

INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm

INA GE20ET2RS Steel / PTFE Spherical Plain Bearing 20x35x16mm
$60.95 ex VAT
$60.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.82
19+ $38.53
29+ $38.07
39+ $37.61
49+ $37.15
74+ $36.70
99+ $34.40
199+ $33.94
249+ $33.49
499+ $33.03
999+ $32.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
GE..-ET Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
35mm
Width:
16mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 20mm (Tolerance: 0/-0.01)
D 35mm (Tolerance: 0/-0.011)
B 16mm (Tolerance: 0/-0.12)
Radial internal clearance 0-0.04mm
C 12mm (Tolerance: 0/-0.24)
Da min 27.5mm
da max 24.1mm
dk 29mm
Chamfer dimension r1s min 0.3mm
Chamfer dimension r2s min 0.3mm
a 9°
Mass 0.06 kg
Basic dynamic load, radial Cr 67900 N
Basic static load, rating Cor 113000 N
