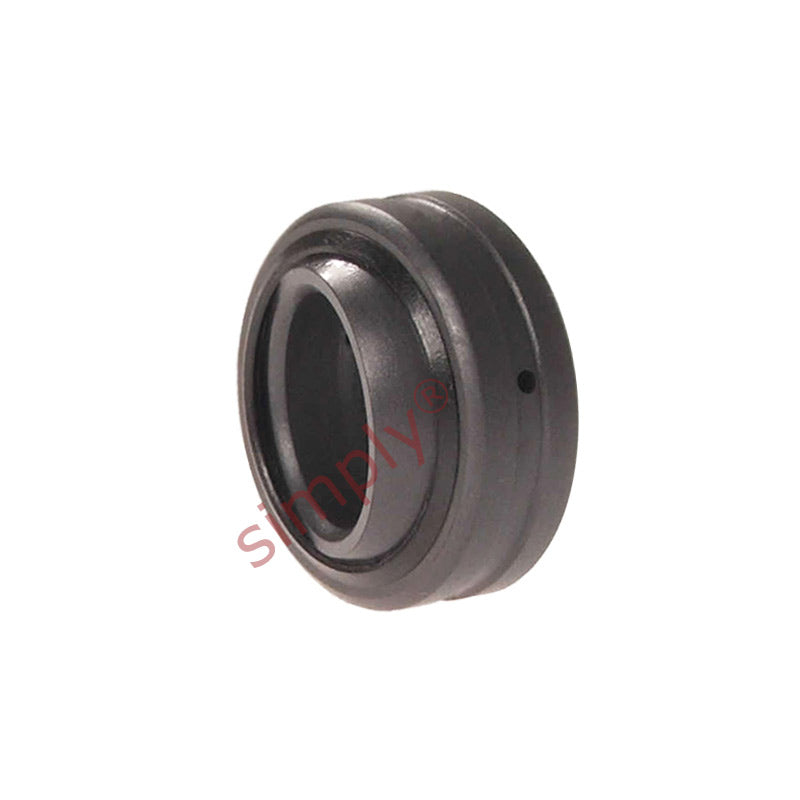

• GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
1 1

SKU: GE260ES2RS.EU

GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm

GE260ES2RS Rubber Sealed Spherical Plain Bearing 260x370x150x110mm
$2,850.44 ex VAT
$2,850.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,909.31
19+ $1,802.04
29+ $1,780.59
39+ $1,759.14
49+ $1,737.68
74+ $1,716.23
99+ $1,608.97
199+ $1,587.51
249+ $1,566.06
499+ $1,544.61
999+ $1,501.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals
Note: The outer raceway may have as part of the manufacturing process a split or crack
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
260mm
Outside Diameter:
370mm
Width:
150mm
Technical
d 260mm
D 370mm
B 150mm
C 110mm
dk 325mm
rs min 1.1mm
r1s min 1.1mm
Angle α 7°
Dynamic load Co 3030 kN
Static load Cor 15190 kN
Weight 51.54 kg
