SKU: GE35-KRR-B-2C-INA

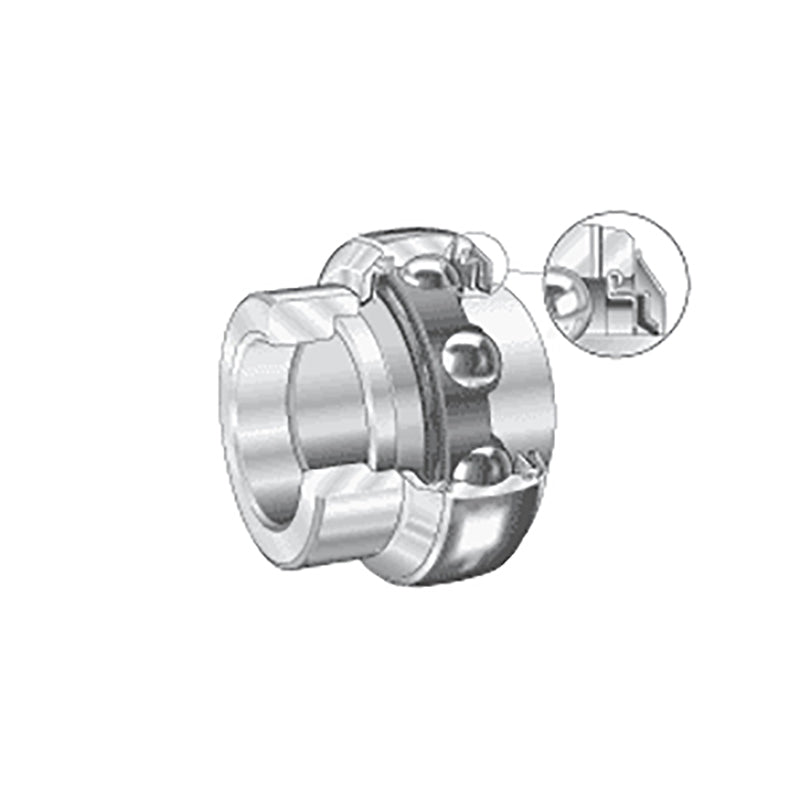

INA GE35KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 35x72x51.3mm - Allow 2-3 Days
INA GE35KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 35x72x51.3mm - Allow 2-3 Days
Regular price
$73.62
ex VAT
Regular price
Sale price
$73.62
ex VAT
In stock
Price Break
3+
$54.85
5+
$52.63
10+
$51.52
15+
$49.86
20+
$48.75
30+
$45.98
40+
$38.78
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
INA GE..KRR-B-2C Series Inserts: Bearing insert with spherical outer race, R seals with flinger shields and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The R seals are fitted with Corrotect®-coated flinger shields to protect the bearing against mechanical damage. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, flinger shields protect against mechanical damage. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 29.2mm |
| Ca | 5.6mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.58 kg |
