SKU: GE40-KRR-B-2C-INA

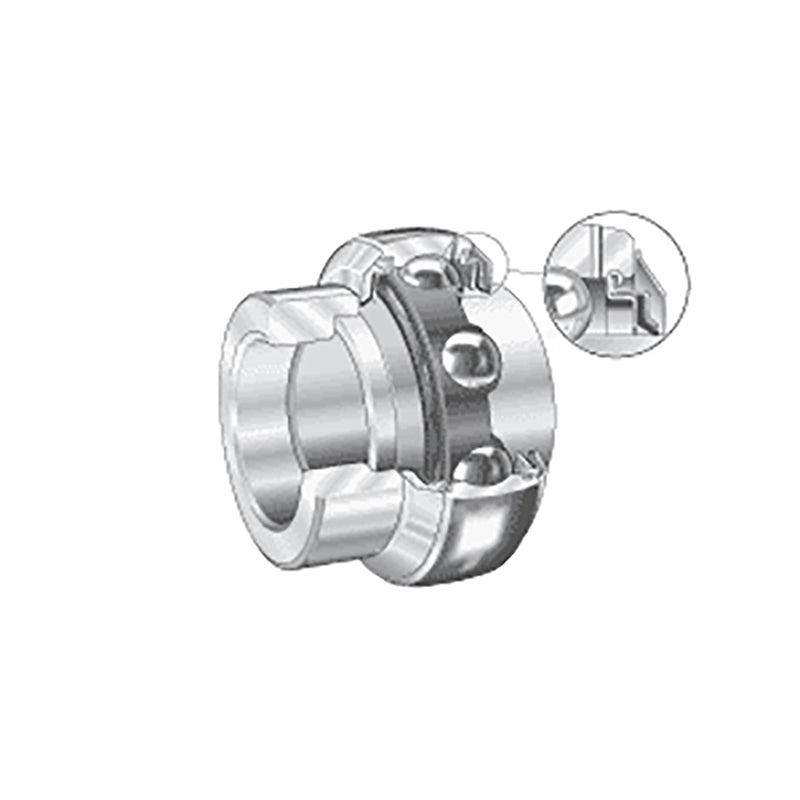

INA GE40KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 40x80x56.5mm
INA GE40KRRB2CA Metric Spherical Outer Bearing Insert with R Seals with Flinger Shields and Eccentric Collar 40x80x56.5mm
Out of stock
Description
Description
|
INA GE..KRR-B-2C Series Inserts: Bearing insert with spherical outer race, R seals with flinger shields and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The R seals are fitted with Corrotect®-coated flinger shields to protect the bearing against mechanical damage. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, flinger shields protect against mechanical damage. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 31.9mm |
| Ca | 6.4mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.78 kg |
