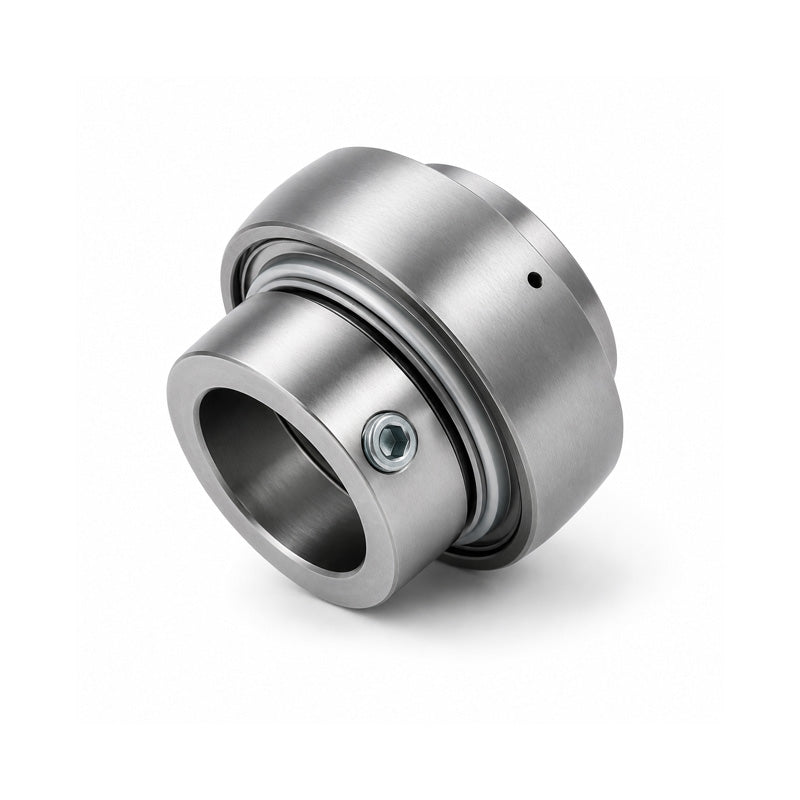

• INA GE45XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 45x85x56.5mm
  • INA
1 2

SKU: GE45-KRR-B-FA125.5-INA

INA GE45XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 45x85x56.5mm

INA GE45XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 45x85x56.5mm
$89.42 ex VAT
$89.42 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.90
5+ $56.53
10+ $55.86
15+ $55.19
20+ $54.51
30+ $53.84
40+ $50.48
50+ $49.80
60+ $49.13
75+ $48.46
100+ $47.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

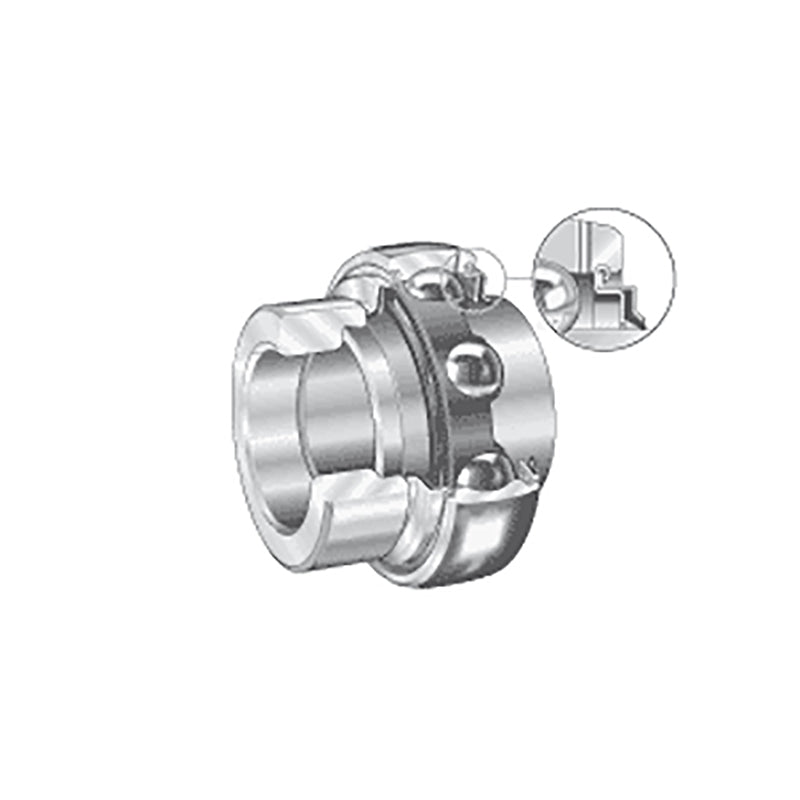

INA GE..KRR-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, anti-corrosion protection.
Brand / Quality:
INA - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
56.5mm
Technical
d 45mm
Dsp 85mm
B1 56.5mm
B 42.9mm
C 22mm
C2 26.4mm
Ca 6.4mm
D1 72.3mm
d1 57.9mm
d3 max 63mm
S 21.4mm
W 5mm
Dynamic load Cr 32500 N
Static load C0r 20400 N
Weight 0.83 kg
