SKU: GE50-KLL-B-INA

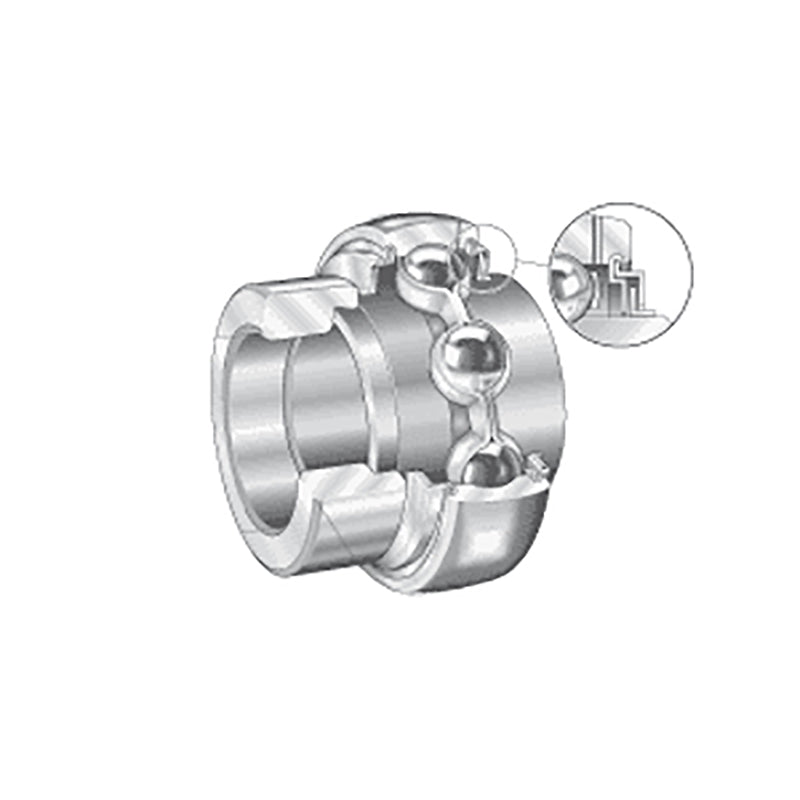

INA GE50XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 50x90x62.8mm
INA GE50XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 50x90x62.8mm
Regular price
$94.62
ex VAT
Regular price
Sale price
$94.62
ex VAT
In stock
Price Break
3+
$63.38
5+
$59.82
10+
$59.10
15+
$58.39
20+
$57.68
30+
$56.97
40+
$53.41
50+
$52.70
60+
$51.98
75+
$51.27
100+
$49.85
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 62.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 62.8mm |
| B | 49.2mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.9mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| d3 max | 69mm |
| S | 24.6mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 1 kg |
