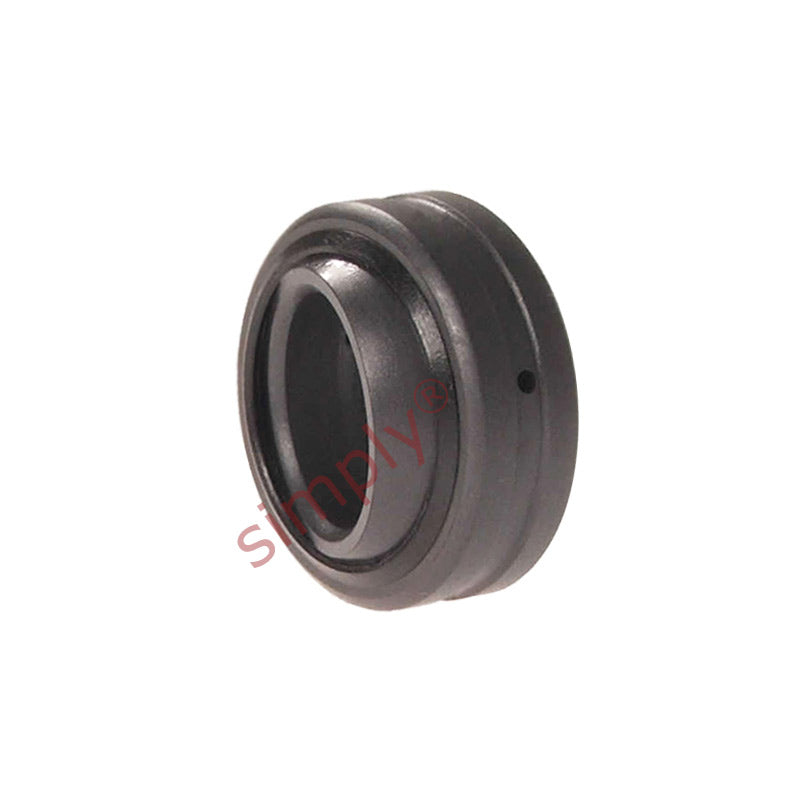

• GE50ES2RS Rubber Sealed Spherical Plain Bearing 50x75x35x28mm
1 1

SKU: GE50ES2RS.EU

GE50ES2RS Rubber Sealed Spherical Plain Bearing 50x75x35x28mm

GE50ES2RS Rubber Sealed Spherical Plain Bearing 50x75x35x28mm
$29.06 ex VAT
$29.06 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.47
19+ $18.37
29+ $18.15
39+ $17.94
49+ $17.72
74+ $17.50
99+ $16.40
199+ $16.19
249+ $15.97
499+ $15.75
999+ $15.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals
Note: The outer raceway may have as part of the manufacturing process a split or crack
Brand / Quality:
Simply Spherical Plain - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Width:
35mm
Technical
d 50mm
D 75mm
B 35mm
C 28mm
dk 66mm
rs min 0.6mm
r1s min 1mm
Angle α 6°
Dynamic load Co 156 kN
Static load Cor 780 kN
Weight 0.546 kg
