SKU: GE55ES2RS.EU

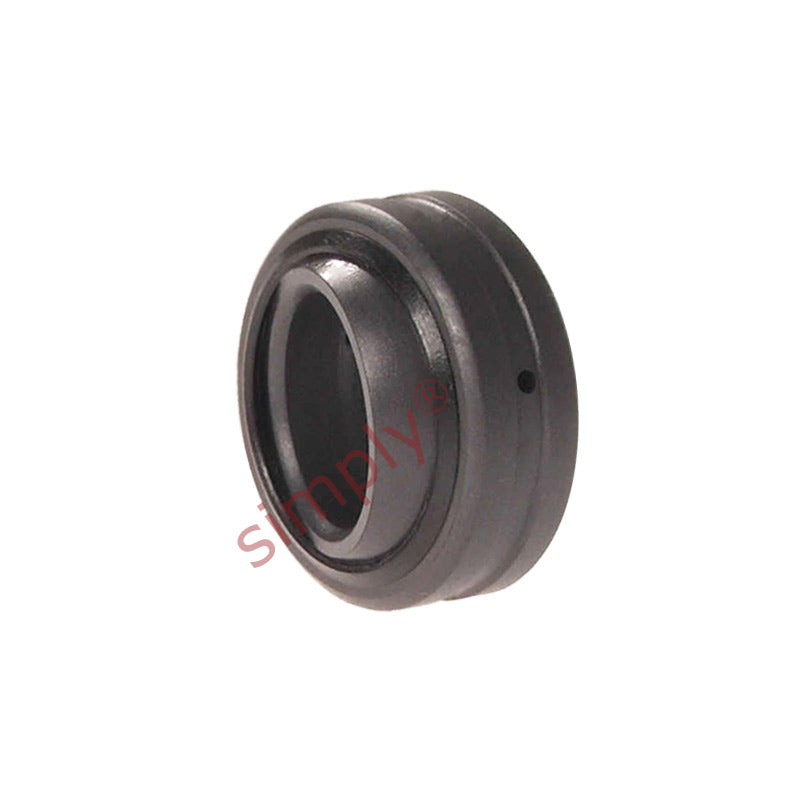

GE55ES2RS Rubber Sealed Spherical Plain Bearing 55x85x40x32mm
GE55ES2RS Rubber Sealed Spherical Plain Bearing 55x85x40x32mm
Out of stock
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 85mm
- Width:
- 40mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 85mm |
| B | 40mm |
| C | 32mm |
| dk | 74mm |
| rs min | 0.6mm |
| r1s min | 1mm |
| Angle α | 7° |
| Dynamic load Co | 200 kN |
| Static load Cor | 1000 kN |
| Weight | 0.939 kg |
