SKU: GE70ES.EU

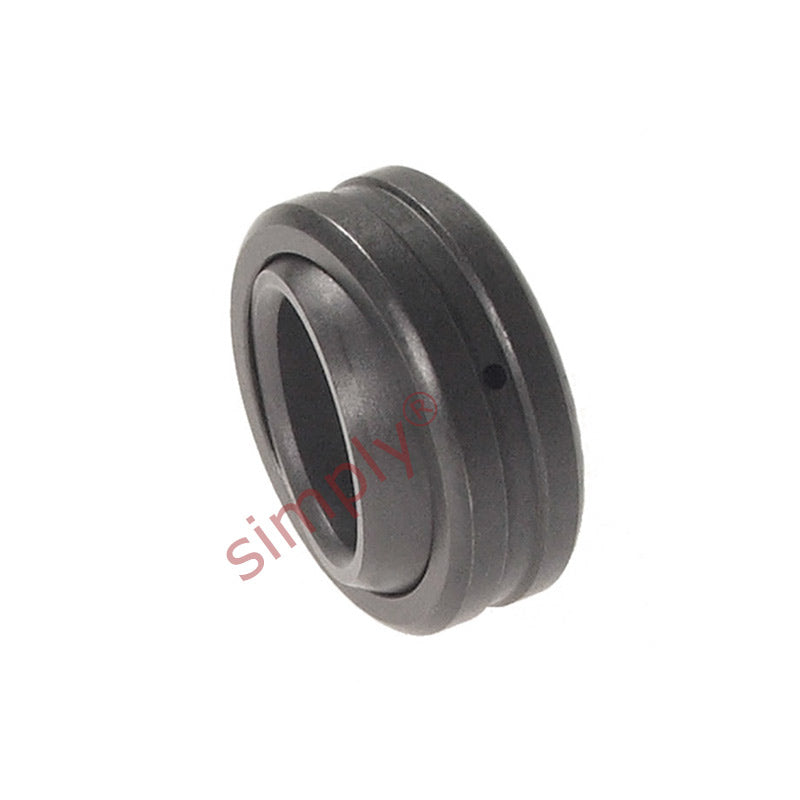

GE70ES Spherical Plain Bearing 70x105x49x40mm

Name: GE70ES Spherical Plain Bearing 70x105x49x40mm
Brand: Simply Spherical Plain
SKU: GE70ES.EU
Price: 55.74 USD
Availability: InStock

$55.74 ex VAT

Sale Sold out

In stock

Price Break

10+ $37.34

19+ $35.24

29+ $34.82

39+ $34.40

49+ $33.98

74+ $33.56

99+ $31.46

199+ $31.04

249+ $30.62

499+ $30.20

999+ $29.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 70mm
Outside Diameter:: 105mm
Width:: 49mm

Technical

d	70mm
D	105mm
B	49mm
C	40mm
dk	92mm
rs min	1mm
r1s min	1mm
Angle α	6°
Dynamic load Co	313 kN
Static load Cor	1560 kN
Weight	1.55 kg
