SKU: GE90TXG3A-2LS-SKF

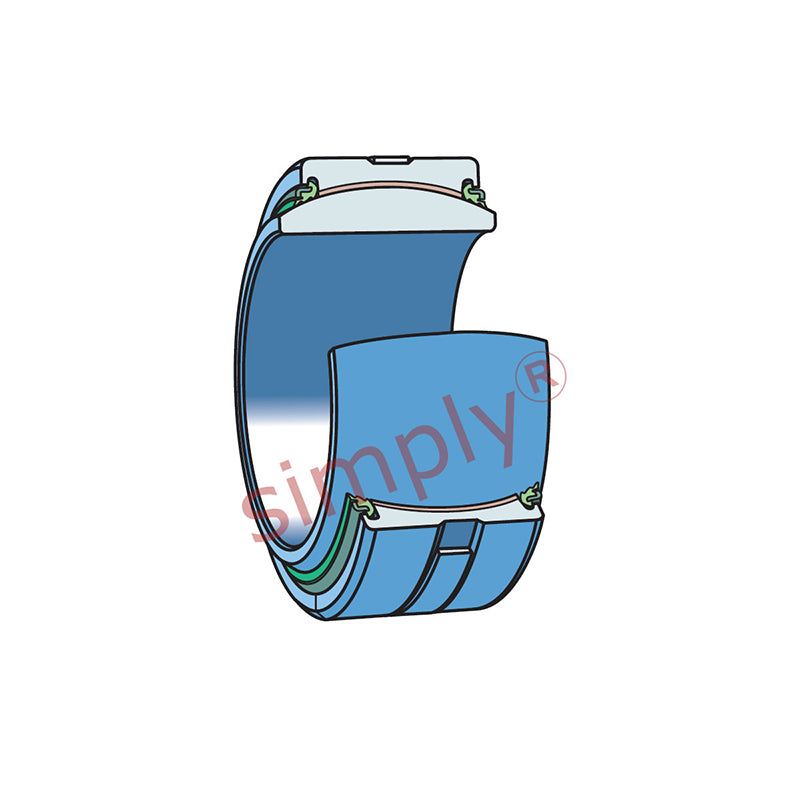

SKF GE90TXG3A2LS Maintenance Free Spherical Plain Bearing Steel /PTFE Fabric 90x130x60x50mm
SKF GE90TXG3A2LS Maintenance Free Spherical Plain Bearing Steel /PTFE Fabric 90x130x60x50mm
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 130mm
- Width:
- 60mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 130mm |
| B | 60mm |
| C | 50mm |
| Max misalignment angle | 5 degrees |
| Dynamic load | 1370 kN |
| Static load | 2320 kN |
| dk | 115mm |
| r1 min | 1mm |
| r2 min | 1mm |
| da min | 97.5mm |
| da max | 98.1mm |
| Da max | 123mm |
| Da min | 113mm |
| ra max | 1mm |
| rb max | 1mm |
| Weight | 2.75 kg |
