SKU: GEH12C-EU

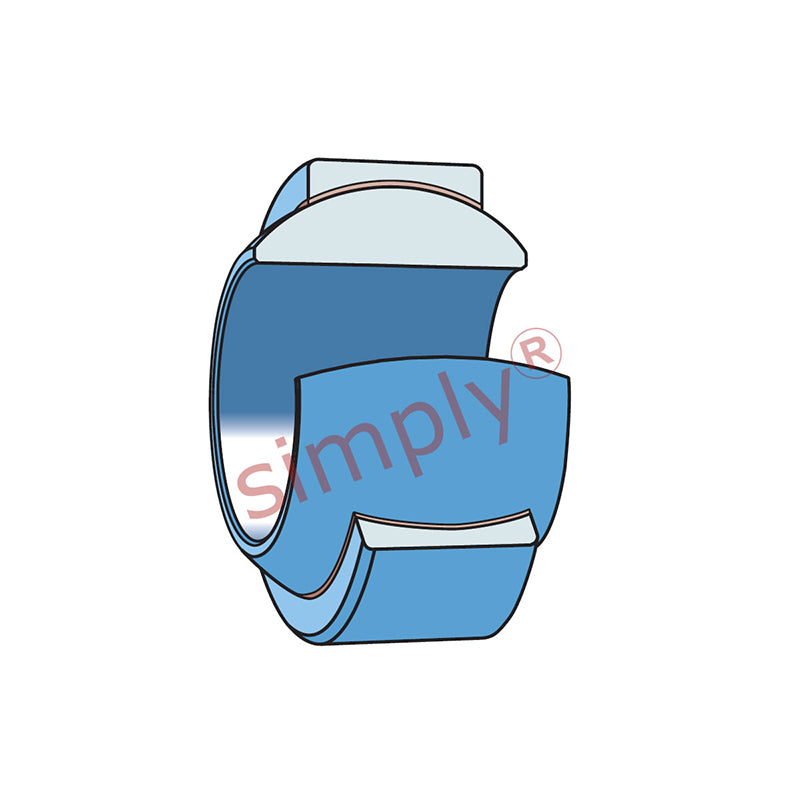

GEH12C Maintenance Free Spherical Plain Bearing 12x26x15x9mm
GEH12C Maintenance Free Spherical Plain Bearing 12x26x15x9mm
Regular price
$13.71
ex VAT
Regular price
Sale price
$13.71
ex VAT
Equivalent to: GE12FW
In stock
Price Break
10+
$9.19
19+
$8.67
29+
$8.57
39+
$8.47
49+
$8.36
74+
$8.26
99+
$7.74
199+
$7.64
249+
$7.54
499+
$7.43
999+
$7.23
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
GEH..C Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE / sintered bronze these spherical plain bearings are unsealed and self lubricating but will require protection from external contaminants. The C design consists of a steel backing with PTFE sintered bronze layer pressed around the inner ring, with a butt joint. GEH..C series differ from GE..C series by a wider inner ring and larger outside diameter compared to GE..C series, to enable higher load ratings and larger tilt angle. Application: Suitable for heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of steel / PTFE / sintered bronze spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Occasional re-lubrication can be beneficial to the service life of this component. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 26mm |
| B | 15mm |
| C | 9mm |
| Max Misalignment Angle | 18 degrees |
| Dynamic Load | 18 kN |
| Static Load | 45 kN |
| dk | 22mm |
| r1 min | 0.3mm |
| r2 min | 0.3mm |
| da min | 13.7mm |
| da max | 16.1mm |
| Da max | 24.5mm |
| Da min | 20.9mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| Weight | 0.03kg |
