SKU: GEH25C-SKF

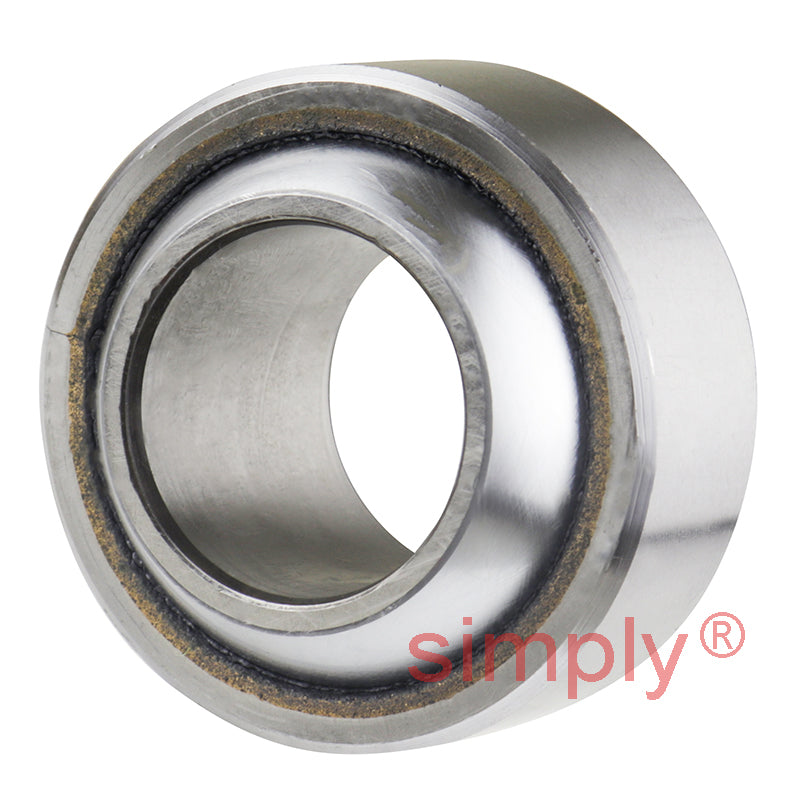

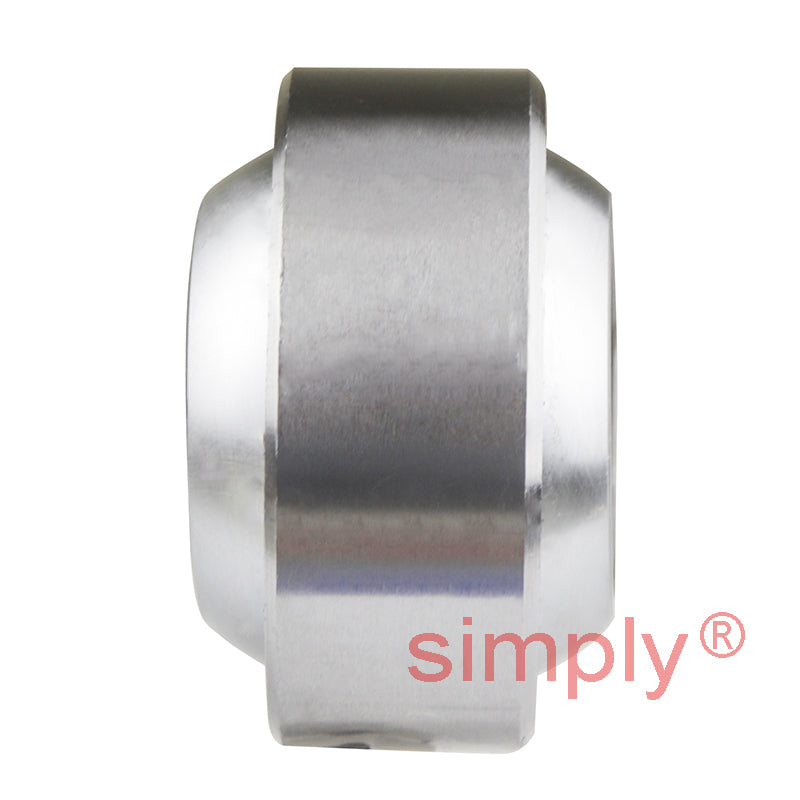

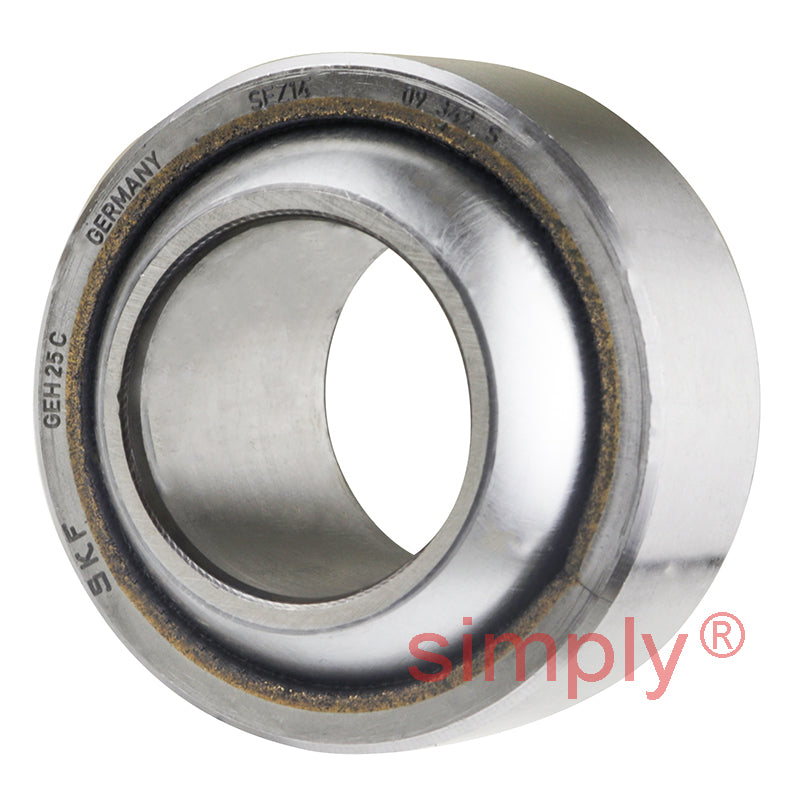

SKF GEH25C Maintenance Free Spherical Plain Bearing Steel / Bronze 25x47x28x18mm
SKF GEH25C Maintenance Free Spherical Plain Bearing Steel / Bronze 25x47x28x18mm
Regular price
$70.54
ex VAT
Regular price
Sale price
$70.54
ex VAT
Equivalent to: GE25FW GEG25C
In stock
Price Break
10+
$47.25
19+
$44.59
29+
$44.06
39+
$43.53
49+
$43.00
74+
$42.47
99+
$39.82
199+
$39.29
249+
$38.75
499+
$38.22
999+
$37.16
Quantity
Couldn't load pickup availability
Description
Description
|
SKF GEH..C Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE / sintered bronze these spherical plain bearings are unsealed and self lubricating but will require protection from external contaminants. The C design consists of a steel backing with PTFE sintered bronze layer pressed around the inner ring, with a butt joint. GEH..C series differ from GE..C series by a wider inner ring and larger outside diameter compared to GE..C series, to enable higher load ratings and larger tilt angle. Application: Suitable for heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / PTFE / sintered bronze spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Occasional re-lubrication can be beneficial to the service life of this component. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 28mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 28mm |
| C | 18mm |
| Max misalignment angle | 17 degrees |
| Dynamic load | 65.5 kN |
| Static load | 166 kN |
| dk | 40.7mm |
| r1 min | 0.6mm |
| r2 min | 0.6mm |
| da min | 27.9mm |
| da max | 29.5mm |
| Da max | 44.4mm |
| Da min | 38.7mm |
| ra max | 0.6mm |
| rb max | 0.6mm |
| Weight | 0.2 kg |
