SKU: GEM80ES-2RS-SKF

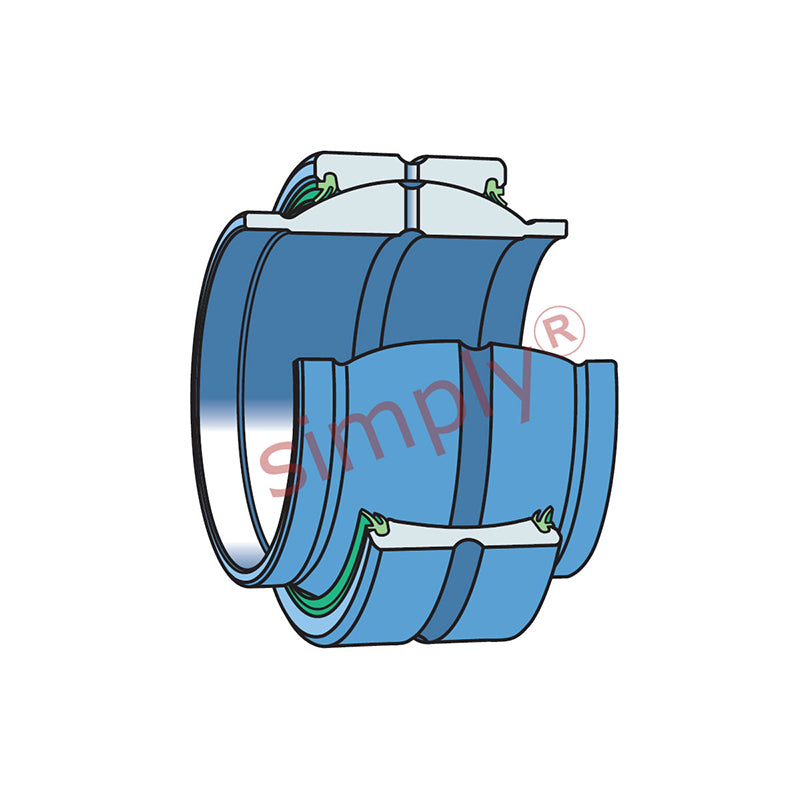

SKF GEM80ES2RS Extended Inner Spherical Plain Bearing 80x120x74x45mm
SKF GEM80ES2RS Extended Inner Spherical Plain Bearing 80x120x74x45mm
Regular price
$333.69
ex VAT
Regular price
Sale price
$333.69
ex VAT
Equivalent to: GE80HO2RS GEEM802RS
In stock
Price Break
10+
$223.52
19+
$210.96
29+
$208.45
39+
$205.94
49+
$203.43
74+
$200.91
99+
$188.36
199+
$185.85
249+
$183.33
499+
$180.82
999+
$175.80
Quantity
Couldn't load pickup availability
Description
Description
|
SKF GEM..ES..2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed, they have an extended inner ring and are suited to installations where a spacer sleeve is used in the assembly either side of the inner ring. They require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 120mm
- Width:
- 74mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 120mm |
| B | 74mm |
| C | 45mm |
| Max misalignment angle | 4 degrees |
| Dynamic load | 400 kN |
| Static load | 2000 kN |
| dk | 105mm |
| d1 | 90mm |
| b | 7.7mm |
| b1 | 7.7mm |
| M | 4mm |
| r1 min | 0.6mm |
| r2 min | 1mm |
| da min | 86.1mm |
| da max | 90mm |
| Da max | 113.8mm |
| Da min | 104.4mm |
| ra max | 0.6mm |
| rb max | 1mm |
| Weight | 2.5 kg |
