SKU: GEZ200ES-SKF

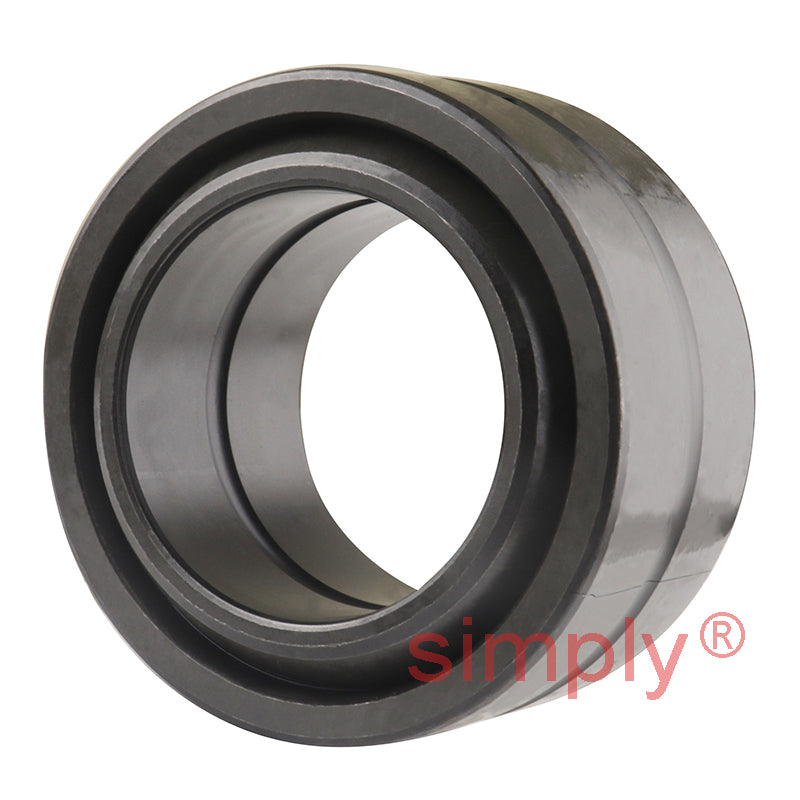

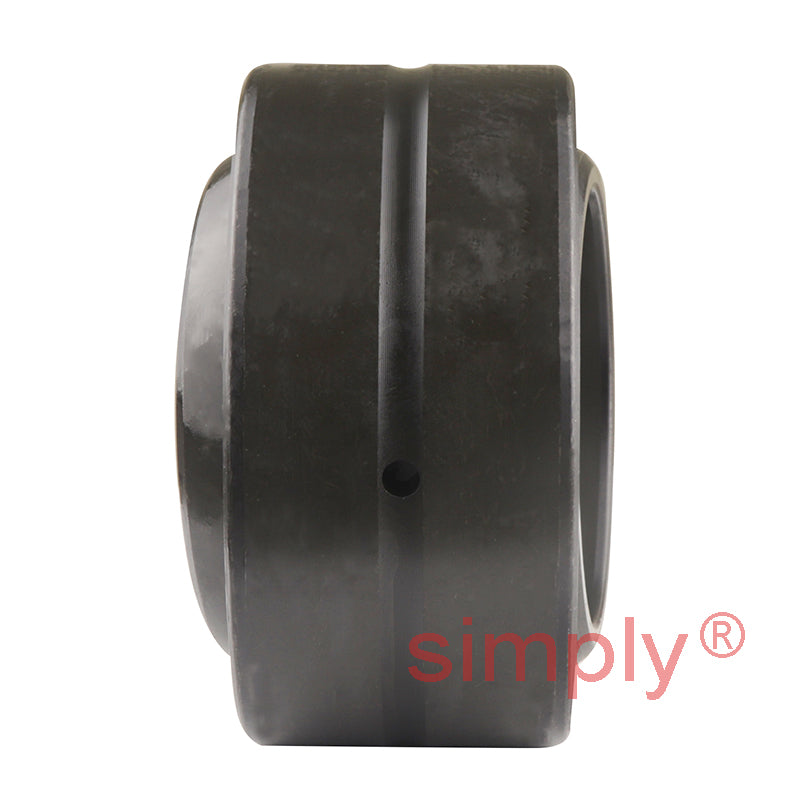

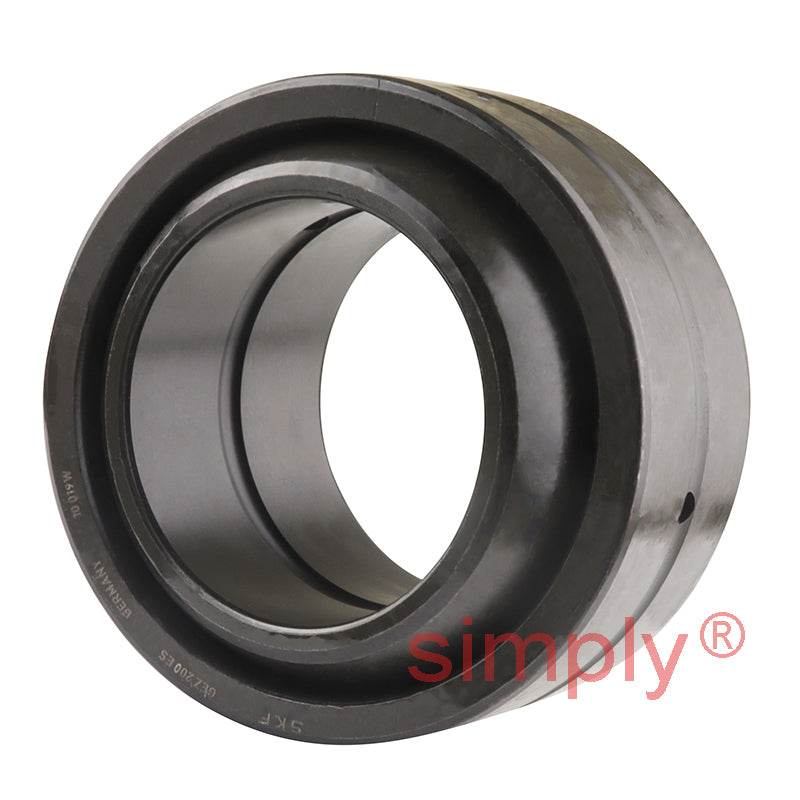

SKF GEZ200ES Spherical Plain Bearing 50.8x80.96x44.45x38.10mm
SKF GEZ200ES Spherical Plain Bearing 50.8x80.96x44.45x38.10mm
Regular price
$130.40
ex VAT
Regular price
Sale price
$130.40
ex VAT
Equivalent to: GE50ZO SBB32 GEZ50ES B32-L 20SF32
In stock
Price Break
10+
$87.34
19+
$82.44
29+
$81.46
39+
$80.47
49+
$79.49
74+
$78.51
99+
$73.60
199+
$72.62
249+
$71.64
499+
$70.66
999+
$68.70
Quantity
Couldn't load pickup availability
Description
Description
|
SKF GEZ..ES Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical

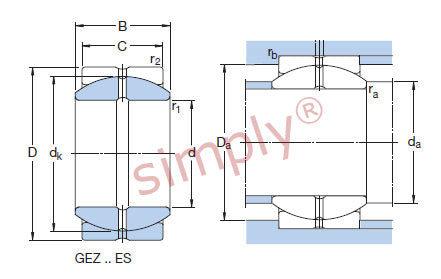

| d | 50.8mm = 2 inch |
|---|---|
| D | 80.96mm = 3-3/16 inch |
| B | 44.45mm = 1-3/4 inch |
| C | 38.10mm = 1.500 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 224 kN |
| Static load | 670 kN |
| dk | 73.025mm = 2.875 inch |
| b | 4.8mm = 0.189 inch |
| b1 | 5mm = 0.197 inch |
| M | 4mm = 0.157 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 55.1mm = 2.169 inch |
| da max | 57.9mm = 2.280 inch |
| Da max | 75.9mm = 2.988 inch |
| Da min | 69.4mm = 2.732 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 0.93 kg |
