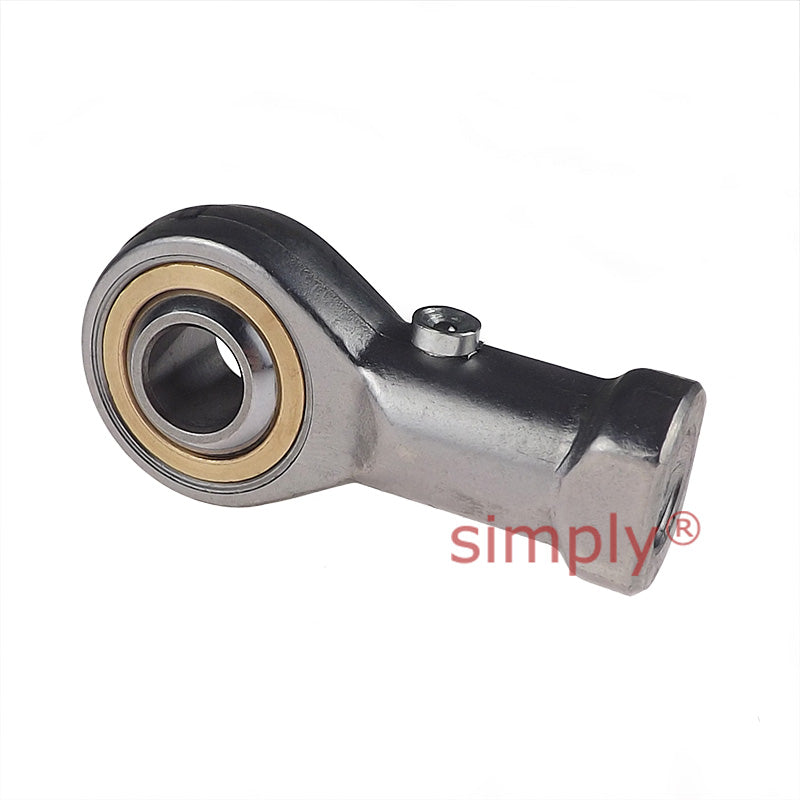

Fluro GILRS03 Left Hand Stainless Steel / Bronze Female Plain Rod End (without lubrication hole) M3 Thread
Fluro GILRS03 Left Hand Stainless Steel / Bronze Female Plain Rod End (without lubrication hole) M3 Thread
Out of stock
Share this product
Description
Description
Fluro GIRS Series Stainless Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 3mm
- Inside Diameter:
- 3mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 3mm |
|---|---|
| B | 6mm |
| M | 4.5mm |
| A | 14mm |
| F | 21mm |
| L | 27mm |
| K | 6.5mm |
| J | 5mm |
| O | 5.1mm |
| SW | 5.5mm |
| Thread Size G | M3 |
| GL | 10mm |
| Static Load Co | 8kN |
| Dynamic Load | 1.8kN |
| Approx weight | 0.006kg |
