SKU: GILSW50-FLURO

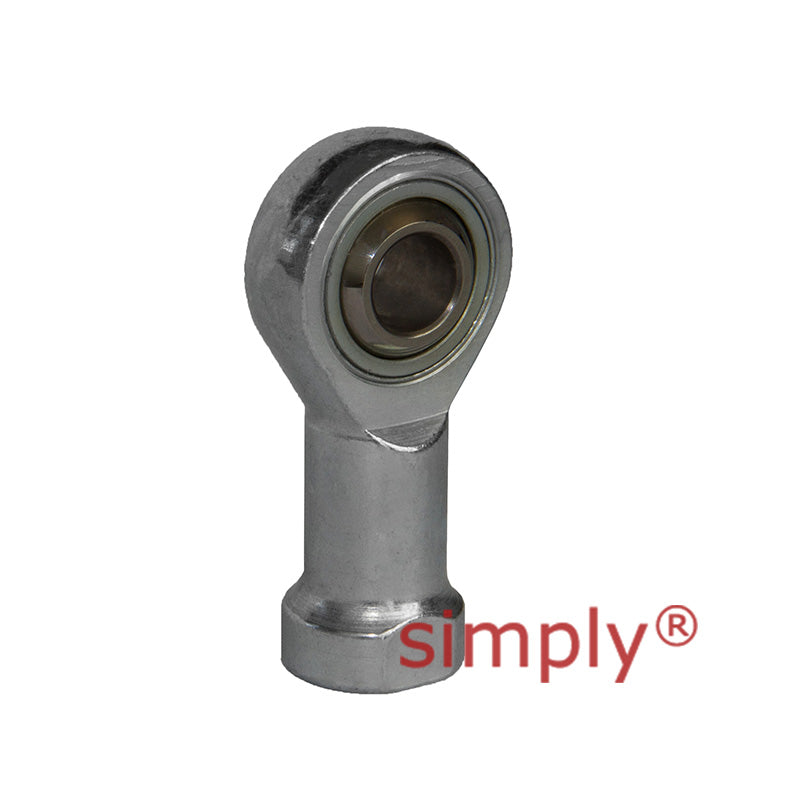

Fluro GILSW50 Left Hand Zinc Plated Steel / PTFE Lined Maintenance Free Female Plain Rod End M48x2 Thread
Fluro GILSW50 Left Hand Zinc Plated Steel / PTFE Lined Maintenance Free Female Plain Rod End M48x2 Thread
Out of stock
Share this product
Description
Description
Fluro GISW Series Zinc Plated Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated with PTFE liner, maintenance free. For use at dynamic loads
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M48x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 48x2mm
- Inside Diameter:
- 50mm
- Material:
- Steel / PTFE Lined
Technical
Technical
| Bore Size D | 50mm |
|---|---|
| B | 60mm |
| M | 45mm |
| A | 116mm |
| F | 160mm |
| L | 218mm |
| K | 78mm |
| J | 65mm |
| O | 55.9mm |
| SW | 65mm |
| Thread Size G | M48x2 |
| GL | 65mm |
| Static Load Co | 308kN |
| Dynamic Load | 485kN |
| Limiting Speed | 80rev/min |
| Approx weight | 5kg |
