SKU: GIRSW18-FLURO

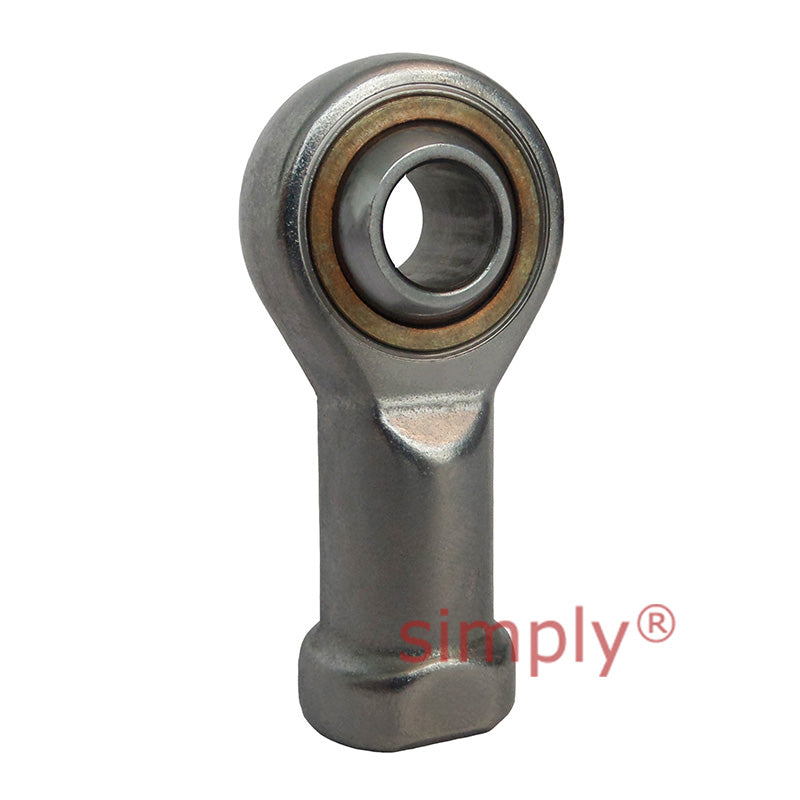

Fluro GIRSW18 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M18x1.5 Thread
Fluro GIRSW18 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M18x1.5 Thread
Out of stock
Description
Description
Fluro GIRSW Series Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 18x1.5mm
- Inside Diameter:
- 18mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 18mm |
|---|---|
| B | 23mm |
| M | 16.5mm |
| A | 46mm |
| F | 71mm |
| L | 94mm |
| K | 31mm |
| J | 25mm |
| O | 21.8mm |
| SW | 27mm |
| Thread Size G | M18x1.5 |
| GL | 32mm |
| Static Load Co | 73kN |
| Dynamic Load | 64kN |
| Limiting Speed | 210rev/min |
| Approx weight | 0.32kg |
