SKU: GLE35-KRR-B-INA

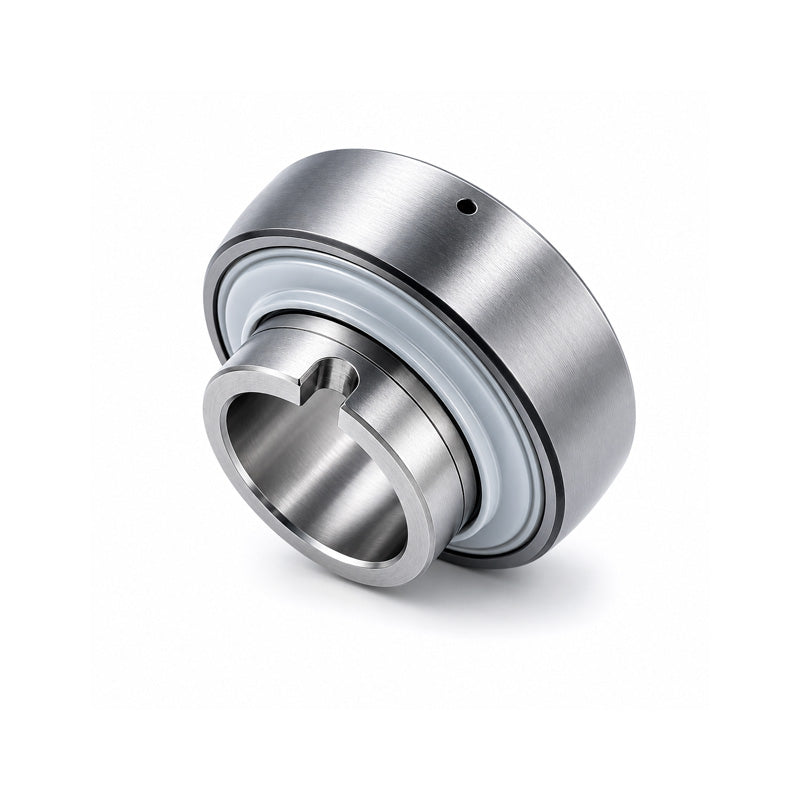

INA GLE35XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 35x72x37.7mm
INA GLE35XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 35x72x37.7mm
Regular price
$66.57
ex VAT
Regular price
Sale price
$66.57
ex VAT
In stock
Price Break
3+
$44.59
5+
$42.08
10+
$41.58
15+
$41.08
20+
$40.58
30+
$40.08
40+
$37.58
50+
$37.07
60+
$36.57
75+
$36.07
100+
$35.07
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 37.7mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B | 37.7mm |
| b | 7mm |
| C | 19mm |
| C2 | 22.5mm |
| Ca | 5.6mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| N | 8mm |
| S | 15.7mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.43 kg |
