SKU: GNE40-KRR-B-INA

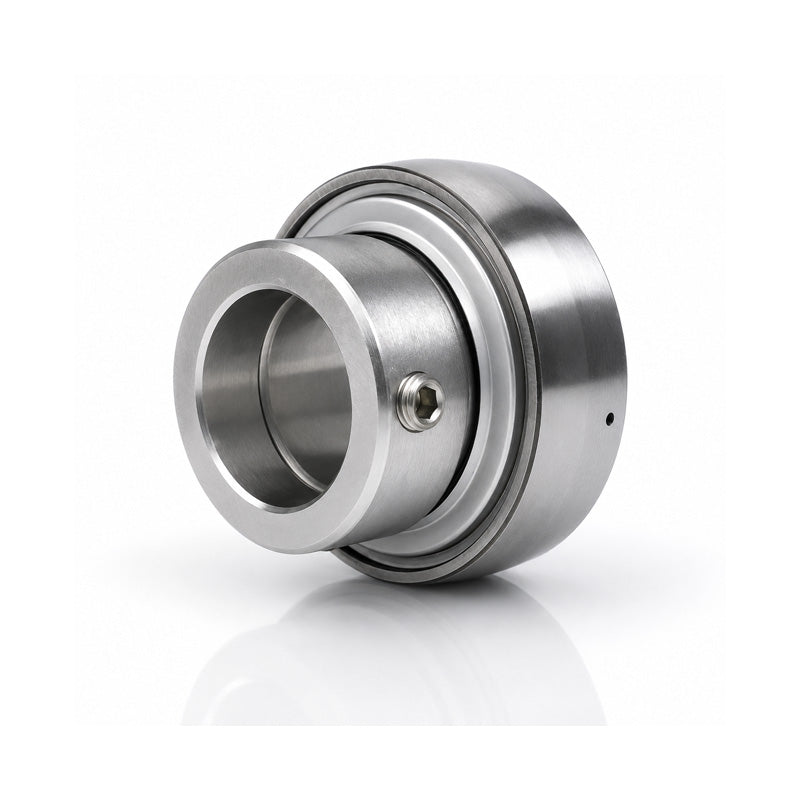

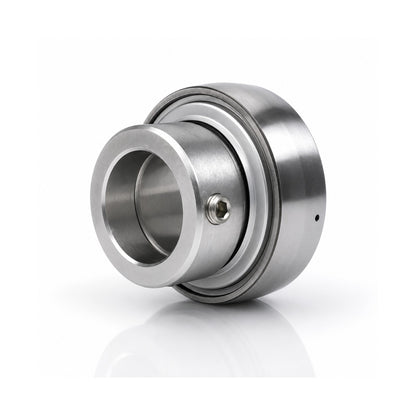

INA GNE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x90x54.6mm
INA GNE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x90x54.6mm
Regular price
$88.17
ex VAT
Regular price
Sale price
$88.17
ex VAT
In stock
Price Break
3+
$59.06
5+
$55.74
10+
$55.08
15+
$54.42
20+
$53.75
30+
$53.09
40+
$49.77
50+
$49.11
60+
$48.44
75+
$47.78
100+
$46.45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA GNE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 54.6mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 90mm |
| B1 | 54.6mm |
| B | 41mm |
| C | 23mm |
| C2 | 26mm |
| Ca | 7.5mm |
| D1 | 74.5mm |
| d1 | 53.8mm |
| d3 max | 63mm |
| S | 18mm |
| W | 5mm |
| Dynamic load Cr | 44500 N |
| Static load C0r | 26000 N |
| Weight | 1.02 kg |
