• DS08/60B-6 Metric DELRIN 500 Moulded Spur Gear 60 Tooth 0.8 Mod Bored 6mm
1 1

SKU: GR/DS08/60B-6MM

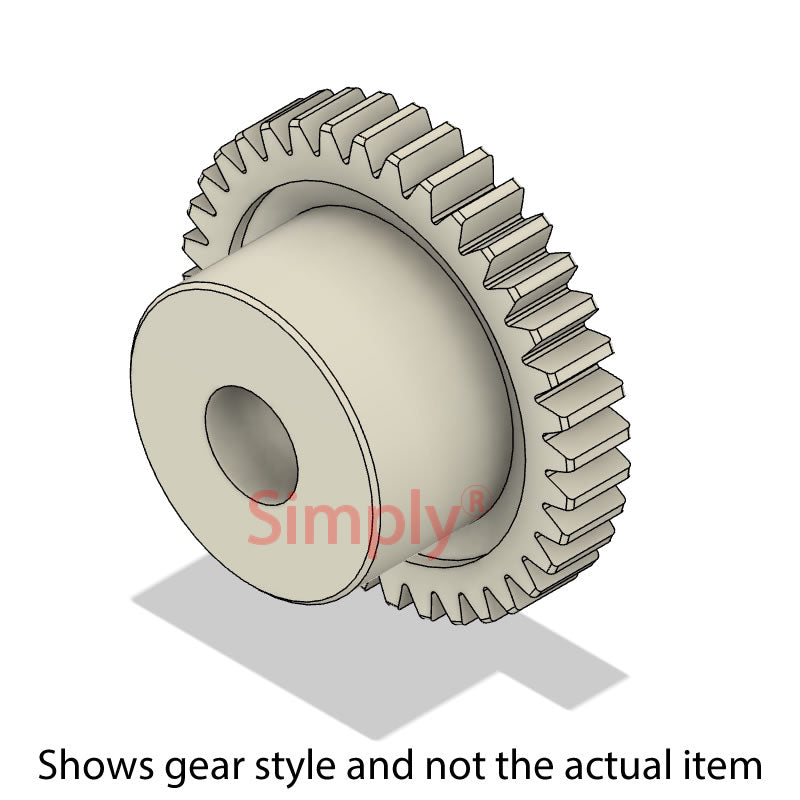

DS08/60B-6 Metric DELRIN 500 Moulded Spur Gear 60 Tooth 0.8 Mod Bored 6mm

DS08/60B-6 Metric DELRIN 500 Moulded Spur Gear 60 Tooth 0.8 Mod Bored 6mm
$9.31 ex VAT
$9.31 ex VAT
Sale Sold out

In stock

Price Break
5+ $6.24
9+ $5.89
19+ $5.82
29+ $5.75
49+ $5.68
74+ $5.61
99+ $5.26
199+ $5.19
249+ $5.12
499+ $5.05
999+ $4.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
6mm
Number of Teeth:
60
Variant:
Tooth Profile B
Pitch Circle Diameter:
48mm
Gear Modulus:
0.8 Mod
Technical
Number of teeth 60
Pitch Diameter (B) 48mm
Bore (-0.02 / -0.04mm) 6mm
Hub / Boss Diameter (D) 14.5mm
Outside Diameter (A) 49.6mm
Width (F) 10mm
Face Width (G) 4mm
Modulus or Mod 0.8 Mod
Standard tolerance (unless otherwise stated) + - 0.25mm
Material Moulded Delrin® 500
Pressure Angle 20 degrees
