• DS10/48B-8 Metric DELRIN 500 Moulded Spur Gear 48 Tooth 1 Mod Bored 8mm
1 1

SKU: GR/DS10/48B-8MM

DS10/48B-8 Metric DELRIN 500 Moulded Spur Gear 48 Tooth 1 Mod Bored 8mm

DS10/48B-8 Metric DELRIN 500 Moulded Spur Gear 48 Tooth 1 Mod Bored 8mm
$11.47 ex VAT
$11.47 ex VAT
Sale Sold out

In stock

Price Break
5+ $7.68
9+ $7.25
19+ $7.16
29+ $7.08
49+ $6.99
74+ $6.91
99+ $6.47
199+ $6.39
249+ $6.30
499+ $6.22
999+ $6.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
8mm
Number of Teeth:
48
Variant:
Tooth Profile B
Pitch Circle Diameter:
48mm
Gear Modulus:
1 Mod

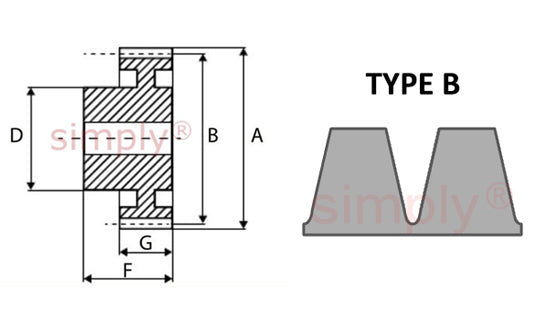

Technical
Number of teeth 48
Pitch Diameter (B) 48mm
Bore (-0.02 / -0.04mm) 8mm
Hub / Boss Diameter (D) 16mm
Outside Diameter (A) 50mm
Width (F) 14mm
Face Width (G) 6mm
Modulus or Mod 1 Mod
Standard tolerance (unless otherwise stated) + - 0.25mm
Material Moulded Delrin® 500
Pressure Angle 20 degrees
