SKU: GR/SS10DP/24B-0.75_INCH

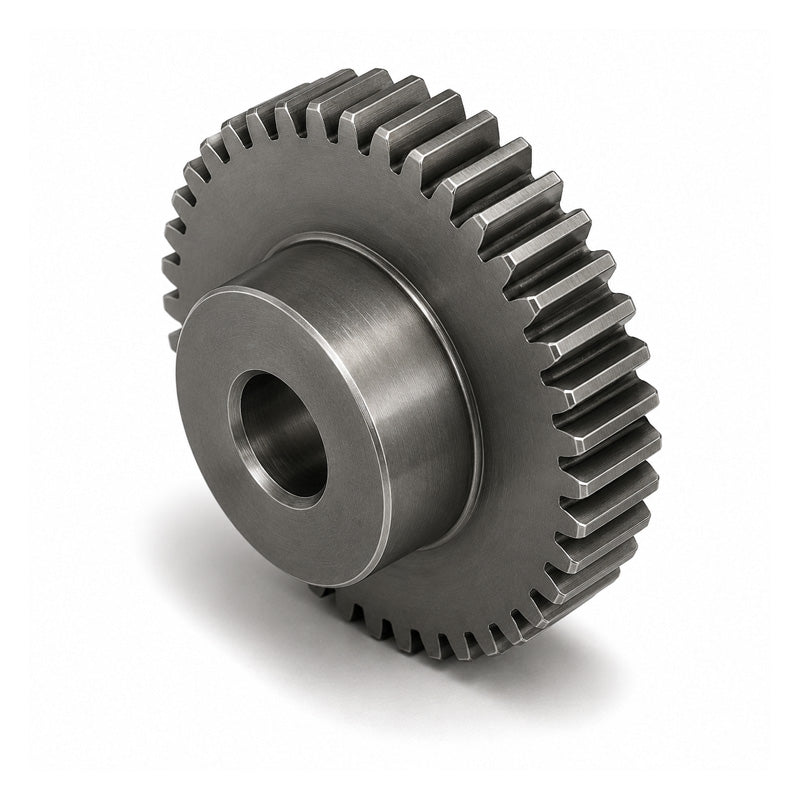

SS10DP/24B-0.75 Imperial EN8 Steel Spur Gear 24 Tooth 10 DP Bored 0.75 inch (H8)

Name: SS10DP/24B-0.75 Imperial EN8 Steel Spur Gear 24 Tooth 10 DP Bored 0.75 inch (H8)
Brand: Drive-Flex
SKU: GR/SS10DP/24B-0.75_INCH
Price: 116.00 USD
Availability: InStock

$116.00 ex VAT

Sale Sold out

In stock

Price Break

5+ $77.69

9+ $73.33

19+ $72.46

29+ $71.58

49+ $70.71

74+ $69.84

99+ $65.47

199+ $64.60

249+ $63.73

499+ $62.85

999+ $61.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 19.05mm = 0.75 (3/4) inch
Number of Teeth:: 24
Variant:: Tooth Profile B
Pitch Circle Diameter:: 60.96mm = 2.4 inch
Gear Modulus:: 10DP

Technical

Number of Teeth	24
Pitch (dp)	2.4 inch
Bore (H8)	0.75 inch
Hub / Boss (dm)	1.5 inch
Outside (de)	2.6 inch
Width (A)	1.625 inch
Face Width (B)	1 inch
Modulus / Diametral Pitch DP	10 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
