SKU: GR/SS10DP/32B-0.75_INCH

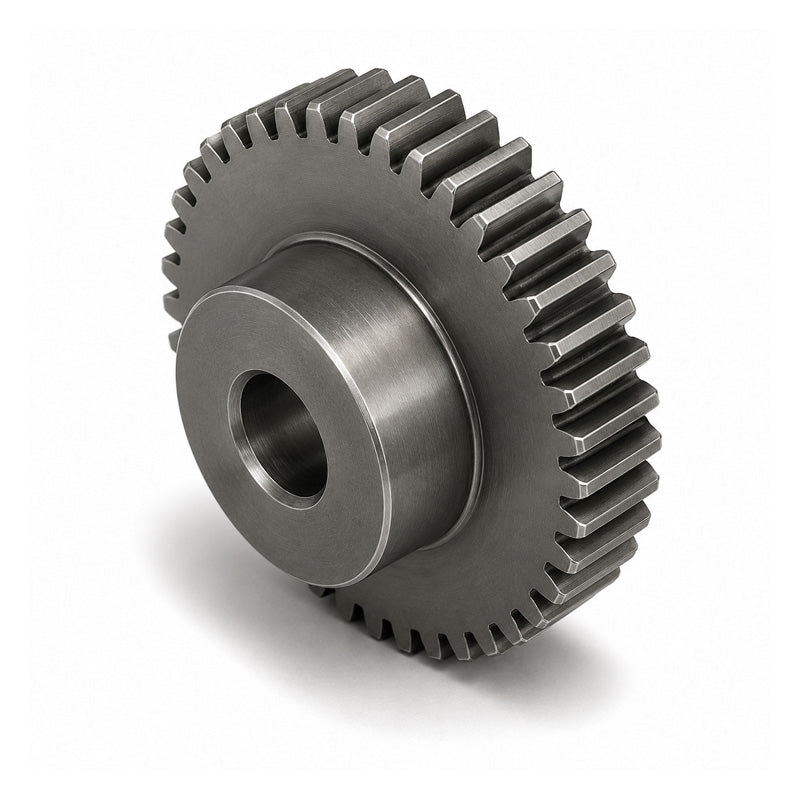

SS10DP/32B-0.75 Imperial EN8 Steel Spur Gear 32 Tooth 10 DP Bored 0.75 inch (H8)

Name: SS10DP/32B-0.75 Imperial EN8 Steel Spur Gear 32 Tooth 10 DP Bored 0.75 inch (H8)
Brand: Drive-Flex
SKU: GR/SS10DP/32B-0.75_INCH
Price: 137.64 USD
Availability: InStock

$137.64 ex VAT

Sale Sold out

In stock

Price Break

5+ $92.19

9+ $87.01

19+ $85.98

29+ $84.94

49+ $83.91

74+ $82.87

99+ $77.69

199+ $76.65

249+ $75.62

499+ $74.58

999+ $72.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 19.05mm = 0.75 (3/4) inch
Number of Teeth:: 32
Variant:: Tooth Profile B
Pitch Circle Diameter:: 81.28mm = 3.2 inch
Gear Modulus:: 10DP

Technical

Number of Teeth	32
Pitch (dp)	3.2 inch
Bore (H8)	0.75 inch
Hub / Boss (dm)	1.5 inch
Outside (de)	3.4 inch
Width (A)	1.875 inch
Face Width (B)	1 inch
Modulus / Diametral Pitch DP	10 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
