SKU: GR/SS10DP/36B-0.75_INCH

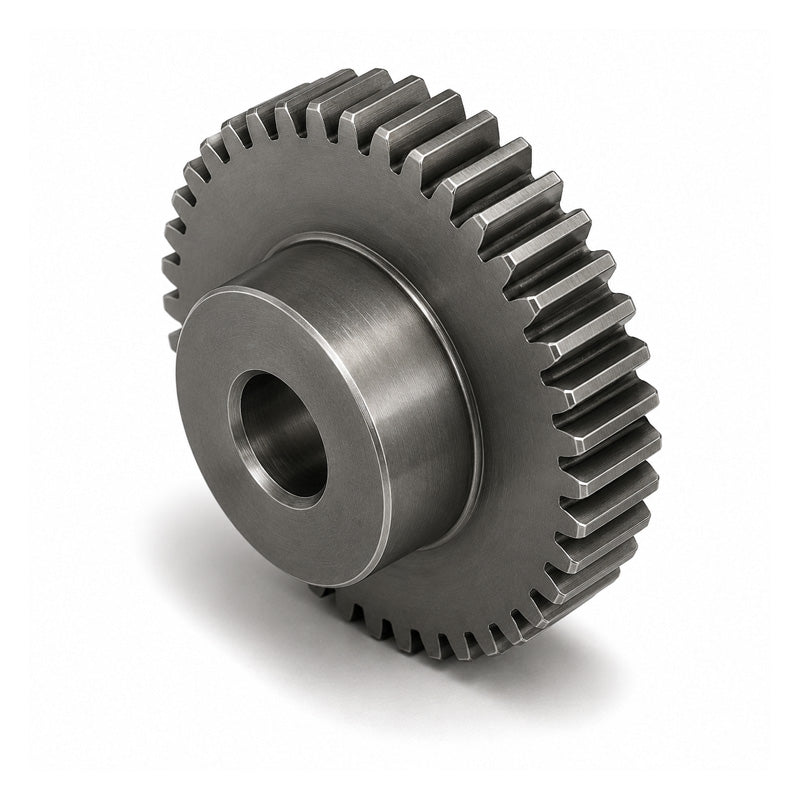

SS10DP/36B-0.75 Imperial EN8 Steel Spur Gear 36 Tooth 10 DP Bored 0.75 inch (H8)

Name: SS10DP/36B-0.75 Imperial EN8 Steel Spur Gear 36 Tooth 10 DP Bored 0.75 inch (H8)
Brand: Drive-Flex
SKU: GR/SS10DP/36B-0.75_INCH
Price: 144.30 USD
Availability: InStock

$144.30 ex VAT

Sale Sold out

In stock

Price Break

5+ $96.65

9+ $91.22

19+ $90.14

29+ $89.05

49+ $87.97

74+ $86.88

99+ $81.45

199+ $80.36

249+ $79.28

499+ $78.19

999+ $76.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 19.05mm = 0.75 (3/4) inch
Number of Teeth:: 36
Variant:: Tooth Profile B
Pitch Circle Diameter:: 91.44mm = 3.6 inch
Gear Modulus:: 10DP

Technical

Number of Teeth	36
Pitch (dp)	3.6 inch
Bore (H8)	0.75 inch
Hub / Boss (dm)	1.5 inch
Outside (de)	3.8 inch
Width (A)	1.875 inch
Face Width (B)	1 inch
Modulus / Diametral Pitch DP	10 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
