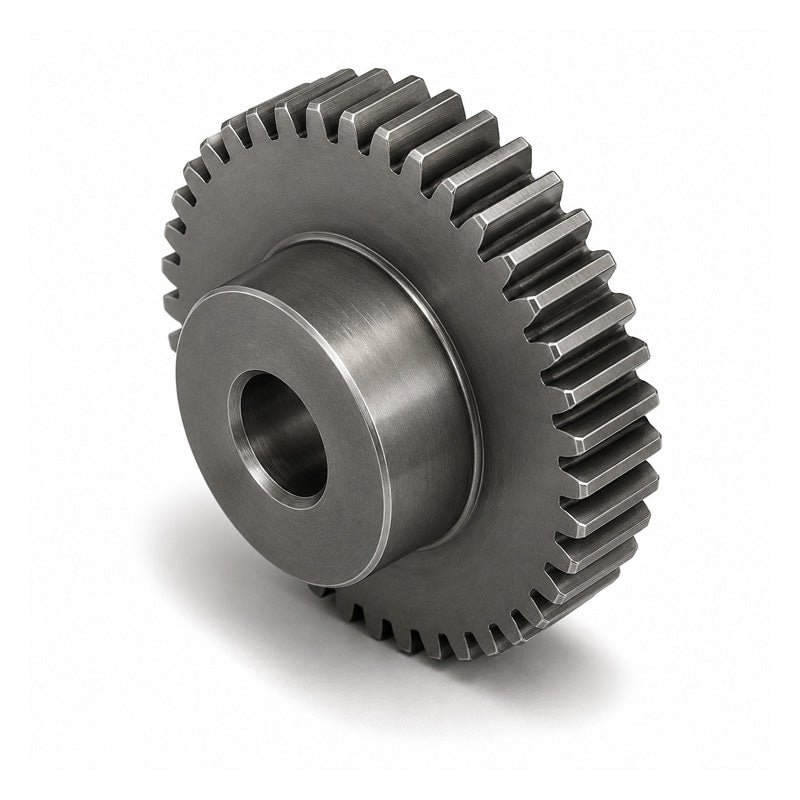

• SS10DP/40B-0.875 Imperial EN8 Steel Spur Gear 40 Tooth 10 DP Bored 0.875 inch (H8)
1 1

SKU: GR/SS10DP/40B-0.875_INCH

SS10DP/40B-0.875 Imperial EN8 Steel Spur Gear 40 Tooth 10 DP Bored 0.875 inch (H8)

SS10DP/40B-0.875 Imperial EN8 Steel Spur Gear 40 Tooth 10 DP Bored 0.875 inch (H8)
$147.07 ex VAT
$147.07 ex VAT
Sale Sold out

In stock

Price Break
5+ $98.51
9+ $92.98
19+ $91.87
29+ $90.76
49+ $89.66
74+ $88.55
99+ $83.02
199+ $81.91
249+ $80.80
499+ $79.70
999+ $77.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
22.23mm = 0.875 (7/8) inch
Number of Teeth:
40
Variant:
Tooth Profile B
Pitch Circle Diameter:
101.6mm = 4 inch
Gear Modulus:
10DP
Technical
Number of Teeth 40
Pitch (dp) 4 inch
Bore (H8) 0.875 inch
Hub / Boss (dm) 2.5 inch
Outside (de) 4.2 inch
Width (A) 1.875 inch
Face Width (B) 1 inch
Modulus / Diametral Pitch DP 10 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
