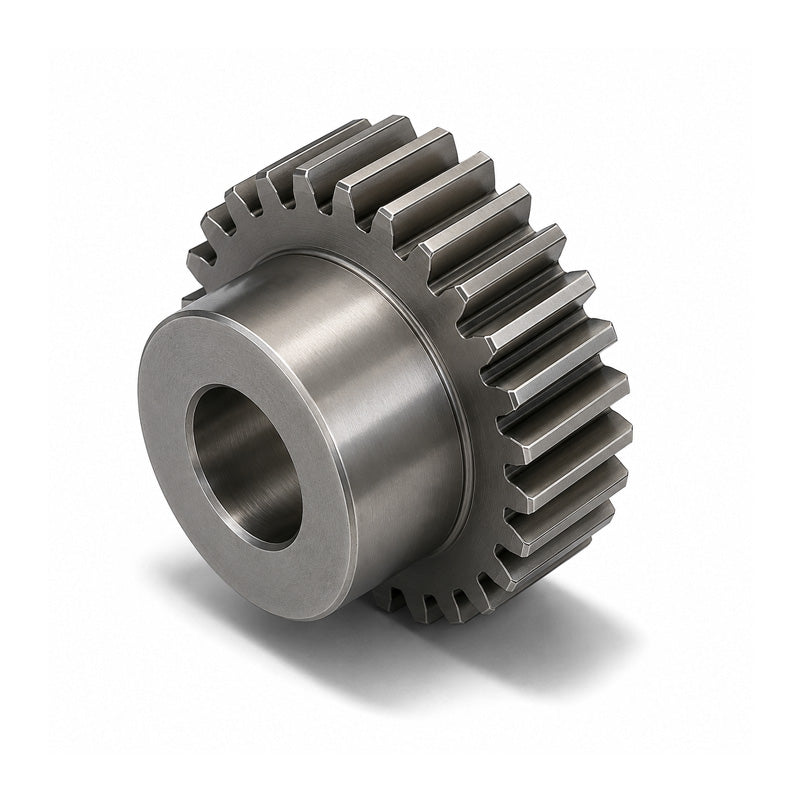

• SS12.5/22B-8 Metric EN8 Spur Gear 22 Tooth 1.25 Mod Pilot Bored 10mm Or Smaller (H8)
1 1

SKU: GR/SS12.5/22B-8MM

SS12.5/22B-8 Metric EN8 Spur Gear 22 Tooth 1.25 Mod Pilot Bored 10mm Or Smaller (H8)

SS12.5/22B-8 Metric EN8 Spur Gear 22 Tooth 1.25 Mod Pilot Bored 10mm Or Smaller (H8)
$14.36 ex VAT
$14.36 ex VAT
Sale Sold out

In stock

Price Break
5+ $9.62
9+ $9.08
19+ $8.97
29+ $8.87
49+ $8.76
74+ $8.65
99+ $8.11
199+ $8.00
249+ $7.89
499+ $7.78
999+ $7.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
10mm
Number of Teeth:
22
Variant:
Tooth Profile B
Pitch Circle Diameter:
27.5mm
Gear Modulus:
1.25 Mod
Technical
Number of teeth 22
Pitch Diameter (dp) 27.5mm
Bore (H8) 10mm Or Smaller
Hub / Boss Diameter (dm) 20mm
Outside Diameter (de) 30mm
Width (A) 25mm
Face Width (B) 15mm
Gear Modulus or Mod 1.25 Mod
Pressure Angle 20 degrees
