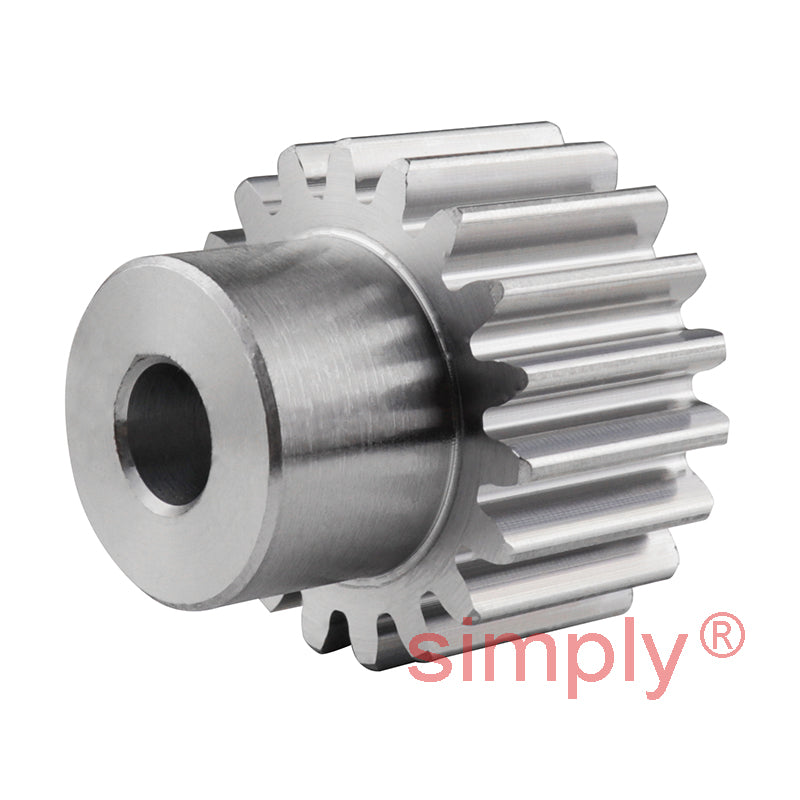

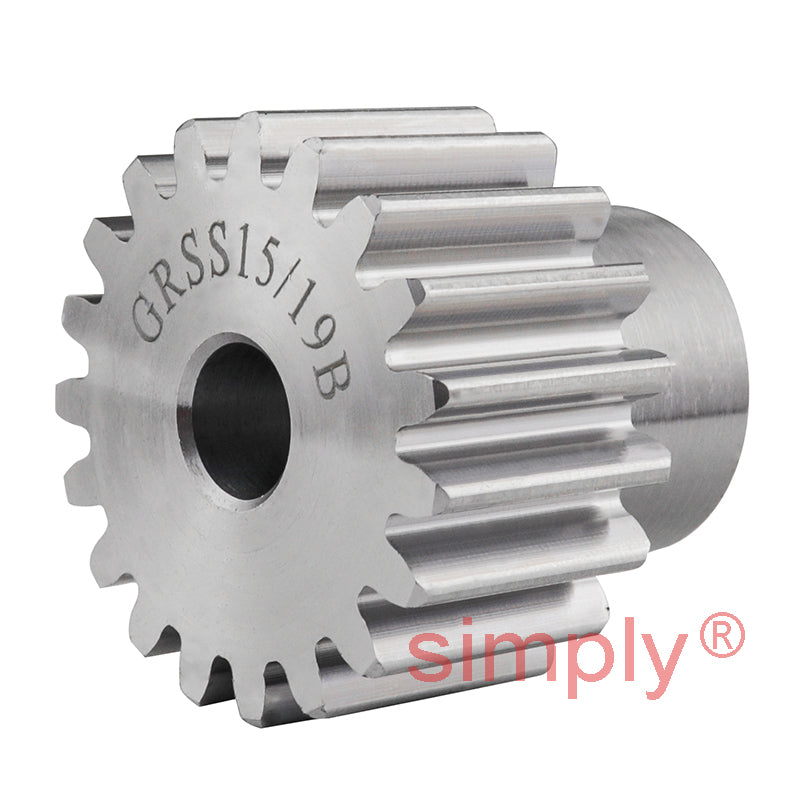

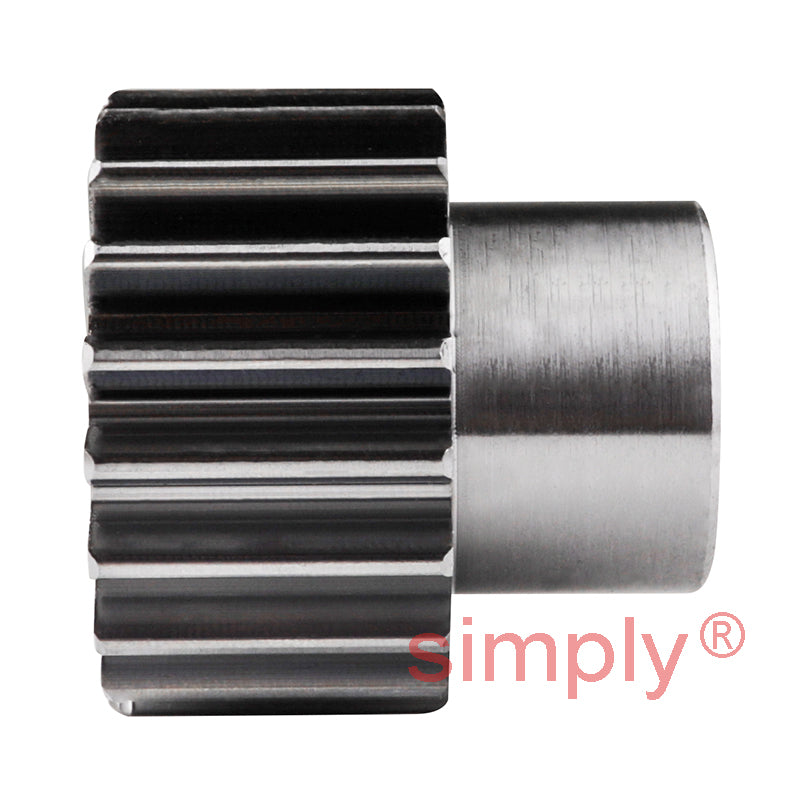

• SS15/19B-8 Metric EN8 Spur Gear 19 Tooth 1.5 Mod Pilot Bored 10mm Or Smaller (H8)
1 1

SKU: GR/SS15/19B-8MM

SS15/19B-8 Metric EN8 Spur Gear 19 Tooth 1.5 Mod Pilot Bored 10mm Or Smaller (H8)

SS15/19B-8 Metric EN8 Spur Gear 19 Tooth 1.5 Mod Pilot Bored 10mm Or Smaller (H8)
$15.19 ex VAT
$15.19 ex VAT
Sale Sold out

In stock

Price Break
5+ $10.17
9+ $9.60
19+ $9.48
29+ $9.37
49+ $9.25
74+ $9.14
99+ $8.57
199+ $8.46
249+ $8.34
499+ $8.23
999+ $8.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
10mm
Number of Teeth:
19
Variant:
Tooth Profile B
Pitch Circle Diameter:
28.5mm
Gear Modulus:
1.5 Mod
Technical
Number of teeth 19
Pitch Diameter (dp) 28.5mm
Bore (H8) 10mm Or Smaller
Hub / Boss Diameter (dm) 20mm
Outside Diameter (de) 31.5mm
Width (A) 30mm
Face Width (B) 17mm
Gear Modulus or Mod 1.5 Mod
Pressure Angle 20 degrees
