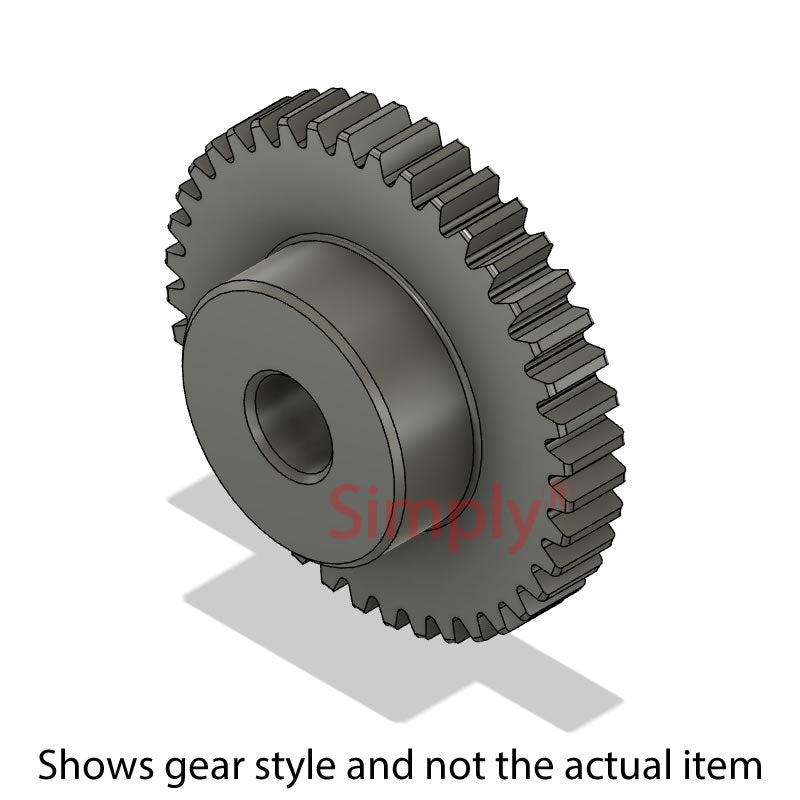

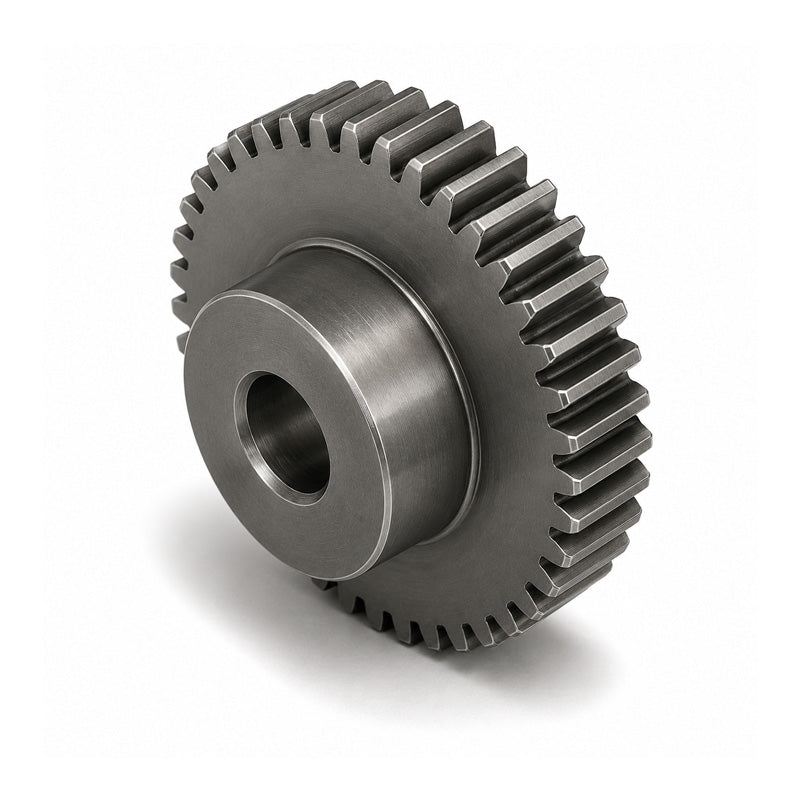

SS16DP/24B-0.5 Imperial EN8 Steel Spur Gear 24 Tooth 16 DP Bored 0.5 inch (H8)

Name: SS16DP/24B-0.5 Imperial EN8 Steel Spur Gear 24 Tooth 16 DP Bored 0.5 inch (H8)
Brand: Drive-Flex
SKU: GR/SS16DP/24B-0.5_INCH
Price: 69.93 USD
Availability: InStock

$69.93 ex VAT

Sale Sold out

In stock

Price Break

5+ $46.84

9+ $44.21

19+ $43.68

29+ $43.16

49+ $42.63

74+ $42.10

99+ $39.47

199+ $38.95

249+ $38.42

499+ $37.89

999+ $36.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 12.7mm = 0.5 (1/2) inch
Number of Teeth:: 24
Variant:: Tooth Profile B
Pitch Circle Diameter:: 38.1mm = 1.5 (1-1/2) inch
Gear Modulus:: 16DP

Technical

Number of Teeth	24
Pitch (dp)	1.5 inch
Bore (H8)	0.5 inch
Hub / Boss (dm)	1 inch
Outside (de)	1.625 inch
Width (A)	0.937 inch
Face Width (B)	0.5 inch
Modulus / Diametral Pitch DP	16 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
