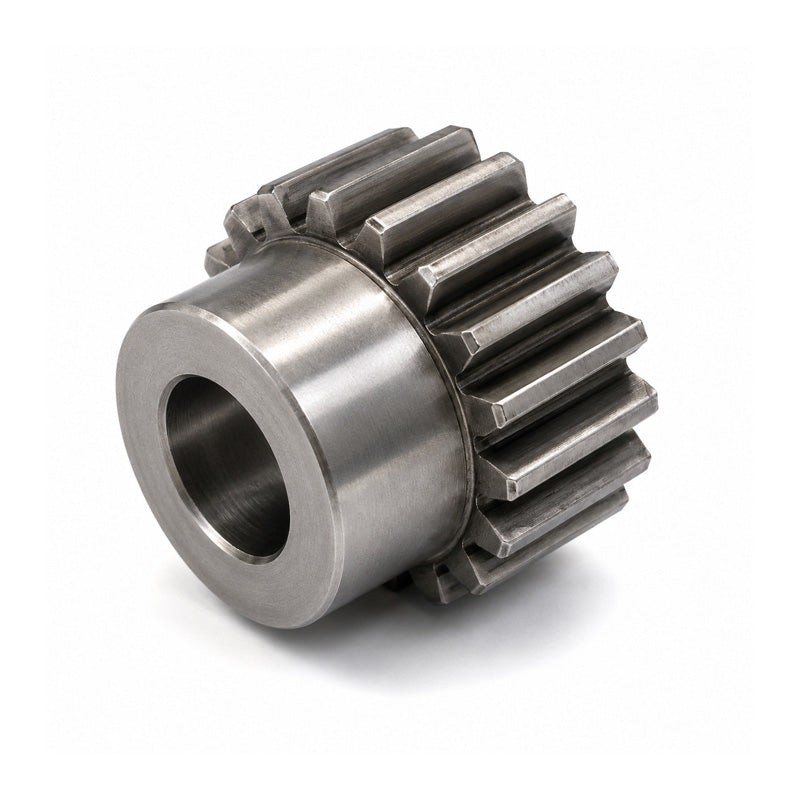

• SS20/22B-12 Metric EN8 Spur Gear 22 Tooth 2 Mod Pilot Bored 14mm Or Smaller (H8)
1 1

SKU: GR/SS20/22B-12MM

SS20/22B-12 Metric EN8 Spur Gear 22 Tooth 2 Mod Pilot Bored 14mm Or Smaller (H8)

SS20/22B-12 Metric EN8 Spur Gear 22 Tooth 2 Mod Pilot Bored 14mm Or Smaller (H8)
$25.67 ex VAT
$25.67 ex VAT
Sale Sold out

In stock

Price Break
5+ $17.19
9+ $16.23
19+ $16.03
29+ $15.84
49+ $15.65
74+ $15.45
99+ $14.49
199+ $14.29
249+ $14.10
499+ $13.91
999+ $13.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
14mm
Number of Teeth:
22
Variant:
Tooth Profile B
Pitch Circle Diameter:
44mm
Gear Modulus:
2 Mod
Technical
Number of teeth 22
Pitch Diameter (dp) 44mm
Bore (H8) 14mm Or Smaller
Hub / Boss Diameter (dm) 30mm
Outside Diameter (de) 48mm
Width (A) 35mm
Face Width (B) 20mm
Gear Modulus or Mod 2 Mod
Pressure Angle 20 degrees
