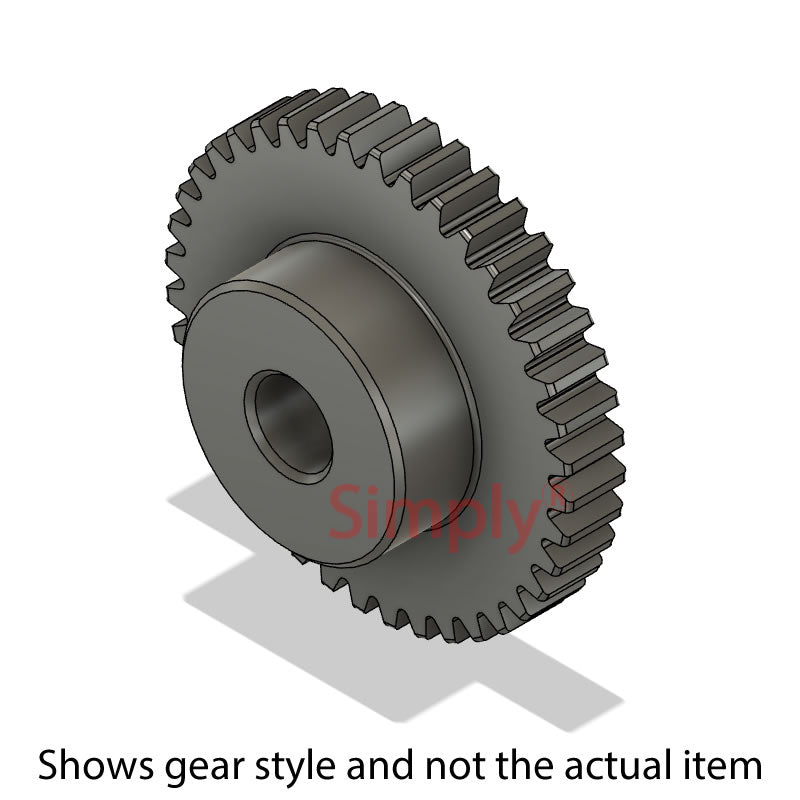

• SS32DP/65B Imperial EN8 Steel Spur Gear 65 Tooth 32 DP Bored 0.375 inch (H8)
1 1

SKU: GR/SS32DP/65B-0.375_INCH

SS32DP/65B Imperial EN8 Steel Spur Gear 65 Tooth 32 DP Bored 0.375 inch (H8)

SS32DP/65B Imperial EN8 Steel Spur Gear 65 Tooth 32 DP Bored 0.375 inch (H8)
$79.92 ex VAT
$79.92 ex VAT
Sale Sold out

In stock

Price Break
5+ $53.53
9+ $50.52
19+ $49.92
29+ $49.32
49+ $48.72
74+ $48.12
99+ $45.11
199+ $44.51
249+ $43.91
499+ $43.31
999+ $42.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
9.53mm = 0.375 (3/8) inch
Number of Teeth:
65
Variant:
Tooth Profile B
Pitch Circle Diameter:
51.59mm = 2.031 (2-1/32) inch
Gear Modulus:
32DP
Technical
Number of Teeth 65
Pitch (dp) 2.031 inch
Bore (H8) 0.375 inch
Hub / Boss (dm) 0.75 inch
Outside (de) 2.093 inch
Width (A) 0.625 inch
Face Width (B) 0.25 inch
Modulus / Diametral Pitch DP 32 dp
Tolerance unless otherwise stated +- 0.01 inch
Pressure Angle 20 degrees
