SS8DP/40B-1 Imperial EN8 Steel Spur Gear 40 Tooth 8 DP Bored 1 inch (H8)

Name: SS8DP/40B-1 Imperial EN8 Steel Spur Gear 40 Tooth 8 DP Bored 1 inch (H8)
Brand: Drive-Flex
SKU: GR/SS8DP/40B-1_INCH
Price: 194.24 USD
Availability: InStock

$194.24 ex VAT

Sale Sold out

In stock

Price Break

5+ $130.11

9+ $122.80

19+ $121.34

29+ $119.88

49+ $118.42

74+ $116.95

99+ $109.64

199+ $108.18

249+ $106.72

499+ $105.26

999+ $102.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Bore:: 25.4mm = 1 inch
Number of Teeth:: 40
Variant:: Tooth Profile B
Pitch Circle Diameter:: 127mm = 5 inch
Gear Modulus:: 8DP

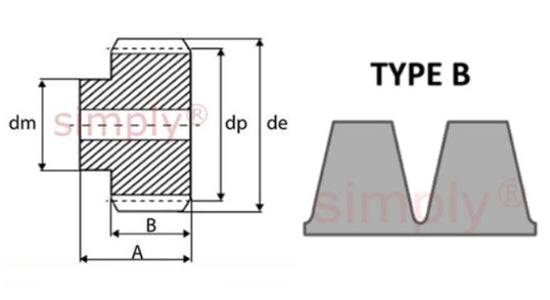

Technical

Number of Teeth	40
Pitch (dp)	5 inch
Bore (H8)	1 inch
Hub / Boss (dm)	2.5 inch
Outside (de)	5.25 inch
Width (A)	2.25 inch
Face Width (B)	1.25 inch
Modulus / Diametral Pitch DP	8 dp
Tolerance unless otherwise stated	+- 0.01 inch
Pressure Angle	20 degrees
