• WPS12.5/35B Metric Moulded Hostaform Spur Gear 35 Tooth 1.25 Mod Bored 8mm (H9)
1 1

SKU: GR/WPS12.5/35B-8MM

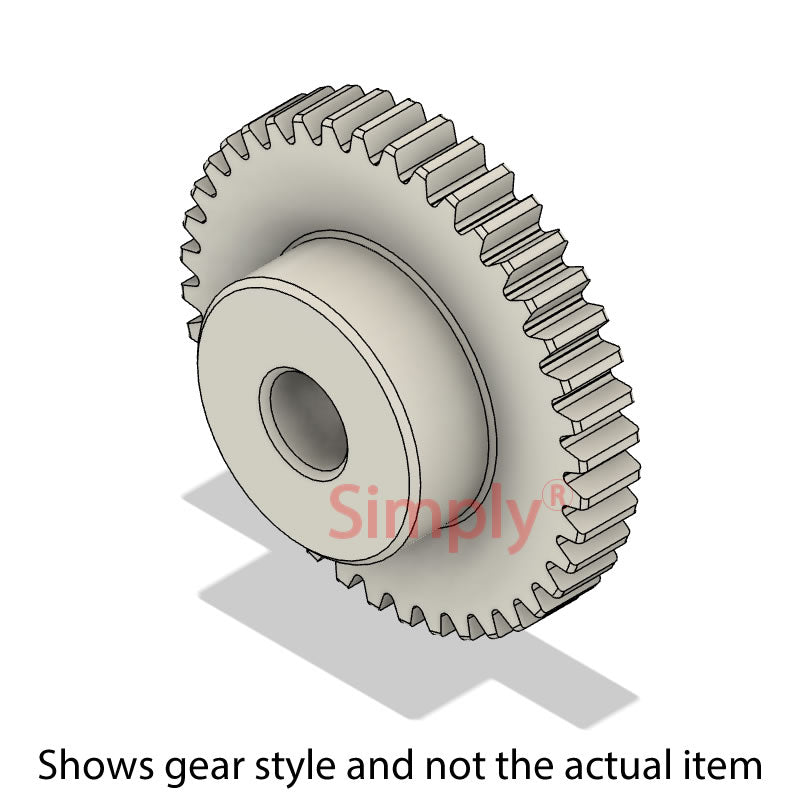

WPS12.5/35B Metric Moulded Hostaform Spur Gear 35 Tooth 1.25 Mod Bored 8mm (H9)

WPS12.5/35B Metric Moulded Hostaform Spur Gear 35 Tooth 1.25 Mod Bored 8mm (H9)
$18.11 ex VAT
$18.11 ex VAT
Sale Sold out

Equivalent to: WPS12.5/35B

In stock

Price Break
5+ $12.13
9+ $11.45
19+ $11.31
29+ $11.18
49+ $11.04
74+ $10.90
99+ $10.22
199+ $10.09
249+ $9.95
499+ $9.81
999+ $9.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
8mm
Number of Teeth:
35
Variant:
Tooth Profile B
Pitch Circle Diameter:
43.75mm
Gear Modulus:
1.25 Mod
Technical
Number of Teeth 35
Pitch (B) 43.75mm
Bore Diameter (H9) 8mm
Hub / Boss Diameter (D) 18mm
Outside Diameter (A) 46.25mm
Width (F) 19mm
Face Width (G) 10mm
Modulus or Mod 1.25 Mod
Pressure Angle 20 degrees
Tolerance unless otherwise stated +- 0.25mm
