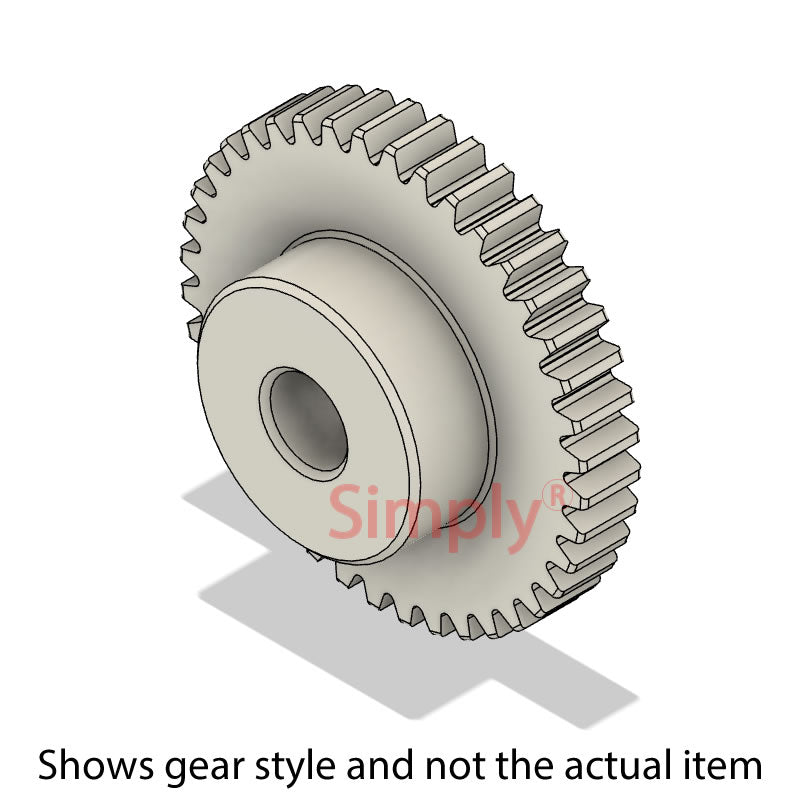

• WPS12.5/50B Metric Moulded Hostaform Spur Gear 50 Tooth 1.25 Mod Bored 8mm (H9)
1 1

SKU: GR/WPS12.5/50B-8MM

WPS12.5/50B Metric Moulded Hostaform Spur Gear 50 Tooth 1.25 Mod Bored 8mm (H9)

WPS12.5/50B Metric Moulded Hostaform Spur Gear 50 Tooth 1.25 Mod Bored 8mm (H9)
$20.99 ex VAT
$20.99 ex VAT
Sale Sold out

Equivalent to: WPS12.5/50B

In stock

Price Break
5+ $14.06
9+ $13.27
19+ $13.12
29+ $12.96
49+ $12.80
74+ $12.64
99+ $11.85
199+ $11.69
249+ $11.54
499+ $11.38
999+ $11.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
8mm
Number of Teeth:
50
Variant:
Tooth Profile B
Pitch Circle Diameter:
62.5mm
Gear Modulus:
1.25 Mod
Technical
Number of Teeth 50
Pitch (B) 62.5mm
Bore Diameter (H9) 8mm
Hub / Boss Diameter (D) 21mm
Outside Diameter (A) 65mm
Width (F) 19mm
Face Width (G) 10mm
Modulus or Mod 1.25 Mod
Pressure Angle 20 degrees
Tolerance unless otherwise stated +- 0.25mm
