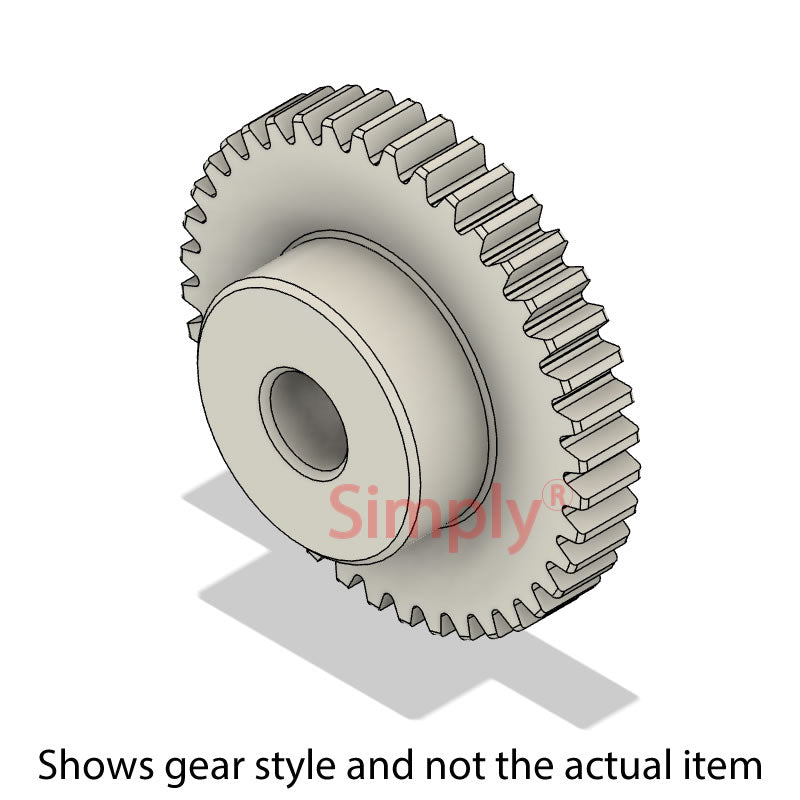

• WPS12.5/65B Metric Moulded Hostaform Spur Gear 65 Tooth 1.25 Mod Bored 10mm (H9)
1 1

SKU: GR/WPS12.5/65B-10MM

WPS12.5/65B Metric Moulded Hostaform Spur Gear 65 Tooth 1.25 Mod Bored 10mm (H9)

WPS12.5/65B Metric Moulded Hostaform Spur Gear 65 Tooth 1.25 Mod Bored 10mm (H9)
$21.27 ex VAT
$21.27 ex VAT
Sale Sold out

Equivalent to: WPS12.5/65B

In stock

Price Break
5+ $14.25
9+ $13.45
19+ $13.29
29+ $13.13
49+ $12.97
74+ $12.81
99+ $12.01
199+ $11.85
249+ $11.69
499+ $11.53
999+ $11.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
10mm
Number of Teeth:
65
Variant:
Tooth Profile B
Pitch Circle Diameter:
81.25mm
Gear Modulus:
1.25 Mod
Technical
Number of Teeth 65
Pitch (B) 81.25mm
Bore Diameter (H9) 10mm
Hub / Boss Diameter (D) 21mm
Outside Diameter (A) 83.75mm
Width (F) 19mm
Face Width (G) 10mm
Modulus or Mod 1.25 Mod
Pressure Angle 20 degrees
Tolerance unless otherwise stated +- 0.25mm
