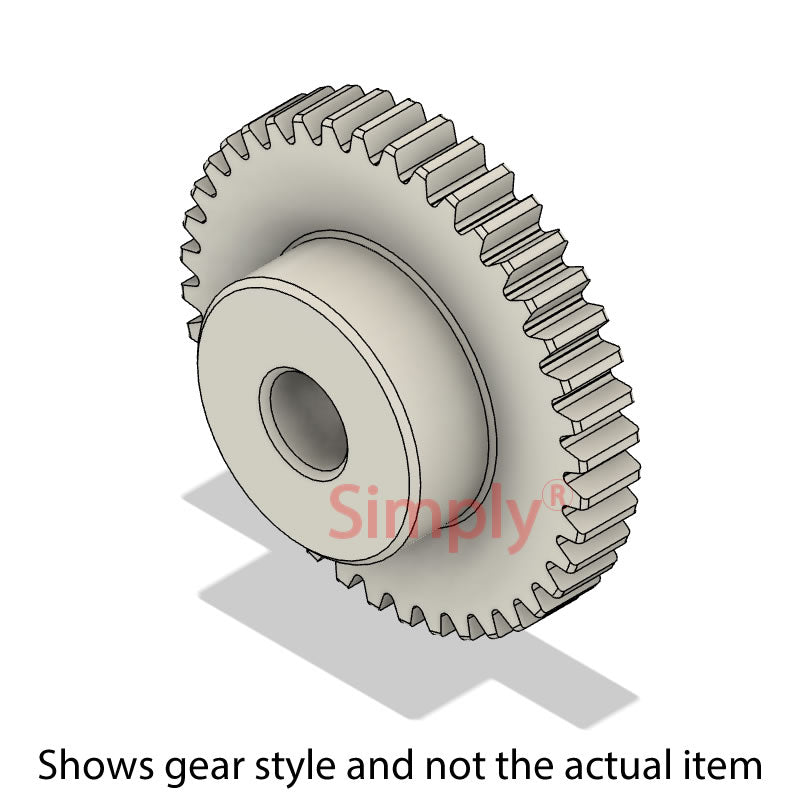

• WPS15/60B-12 Metric Moulded Hostaform Spur Gear 60 Tooth 1.5 Mod Bored 12mm (H9)
1 1

SKU: GR/WPS15/60B-12MM

WPS15/60B-12 Metric Moulded Hostaform Spur Gear 60 Tooth 1.5 Mod Bored 12mm (H9)

WPS15/60B-12 Metric Moulded Hostaform Spur Gear 60 Tooth 1.5 Mod Bored 12mm (H9)
$25.52 ex VAT
$25.52 ex VAT
Sale Sold out

Equivalent to: WPS15/60B-12

In stock

Price Break
5+ $17.10
9+ $16.14
19+ $15.95
29+ $15.76
49+ $15.56
74+ $15.37
99+ $14.41
199+ $14.22
249+ $14.03
499+ $13.83
999+ $13.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Bore:
12mm
Number of Teeth:
60
Variant:
Tooth Profile B
Pitch Circle Diameter:
90mm
Gear Modulus:
1.5 Mod
Technical
Number of Teeth 60
Pitch (B) 90mm
Bore Diameter (H9) 12mm
Hub / Boss Diameter (D) 27mm
Outside Diameter (A) 93mm
Width (F) 23mm
Face Width (G) 12mm
Modulus or Mod 1.5 Mod
Pressure Angle 20 degrees
Tolerance unless otherwise stated +- 0.25mm
