• INA GRA012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 19.05x47x31mm
  • INA
1 2

SKU: GRA012-NPP-B-AS2/V-INA

INA GRA012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 19.05x47x31mm

INA GRA012NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 19.05x47x31mm
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.60
5+ $20.39
10+ $20.14
15+ $19.90
20+ $19.66
30+ $19.42
40+ $18.20
50+ $17.96
60+ $17.72
75+ $17.47
100+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

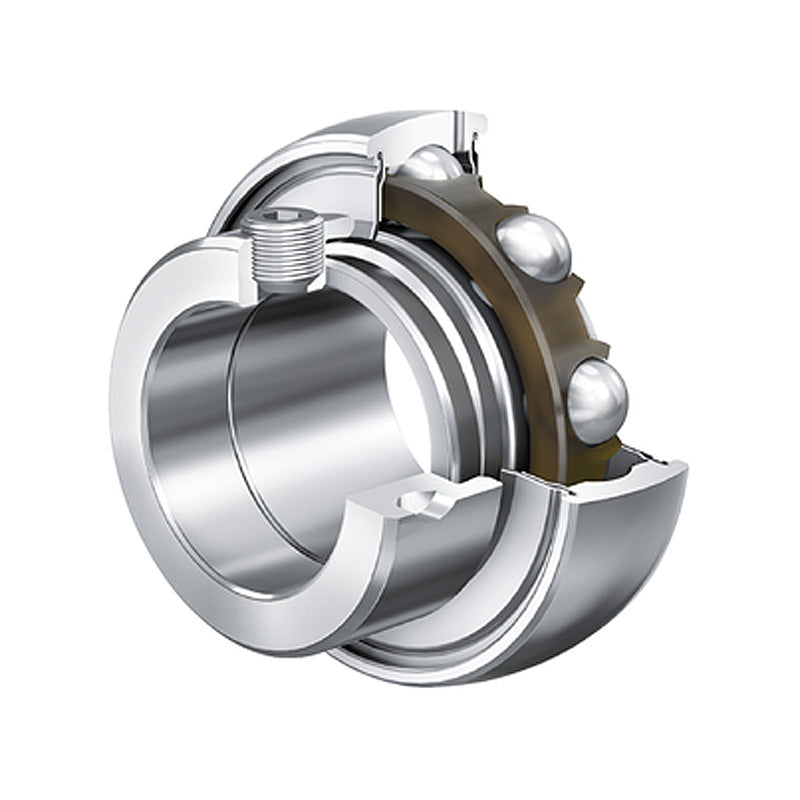

INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
47mm
Width:
31mm
Technical
d 3/4 inch
d 19.05mm
Dsp 1.8504 inch
Dsp 47mm
B1 1.2200 inch
B1 31mm
B 0.843 inch
C 0.551 inch
Ca 0.157 inch
d2 1.059 inch
d3 1.299 inch
S 0.295 inch
W 1/8 inch
Dynamic load Cr 2900 lbf
Dynamic load Cr 12800 N
Static load C0r 1480 lbf
Static load C0r 6600 N
Weight 0.35 lbs
