• INA GRA100NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25.4x52x31mm
  • INA
1 2

SKU: GRA100-NPP-B-AS2/V-INA

INA GRA100NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25.4x52x31mm

INA GRA100NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25.4x52x31mm
$38.69 ex VAT
$38.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.92
5+ $24.46
10+ $24.17
15+ $23.88
20+ $23.59
30+ $23.30
40+ $21.84
50+ $21.55
60+ $21.26
75+ $20.97
100+ $20.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

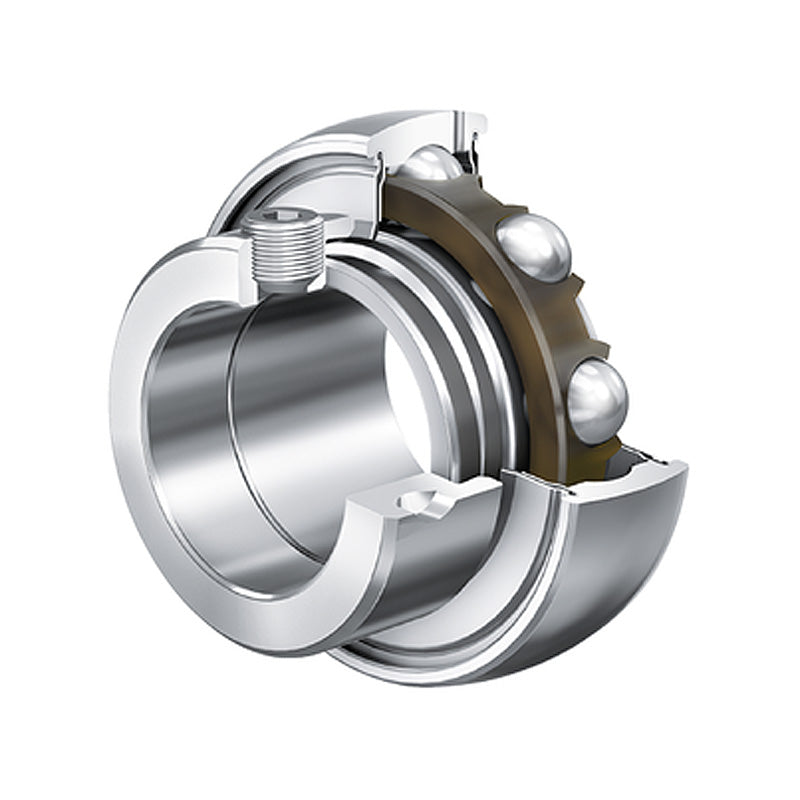

INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
25.4mm = 1
Outside Diameter:
52mm
Width:
31mm
Technical
d 1 inch
d 25.4mm
Dsp 2.0472 inch
Dsp 52mm
B1 1.2200 inch
B1 31mm
B 0.843 inch
C 0.591 inch
Ca 0.154 inch
d2 1.201 inch
d3 1.476 inch
S 0.295 inch
W 1/8 inch
Dynamic load Cr 3150 lbf
Dynamic load Cr 14000 N
Static load C0r 1760 lbf
Static load C0r 7800 N
Weight 0.42 lbs
