• INA GRA102NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 28.58x62x35.8mm
  • INA
1 2

SKU: GRA102-NPP-B-AS2/V-INA

INA GRA102NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 28.58x62x35.8mm

INA GRA102NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 28.58x62x35.8mm
$40.31 ex VAT
$40.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.00
5+ $25.49
10+ $25.18
15+ $24.88
20+ $24.58
30+ $24.27
40+ $22.76
50+ $22.45
60+ $22.15
75+ $21.84
100+ $21.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

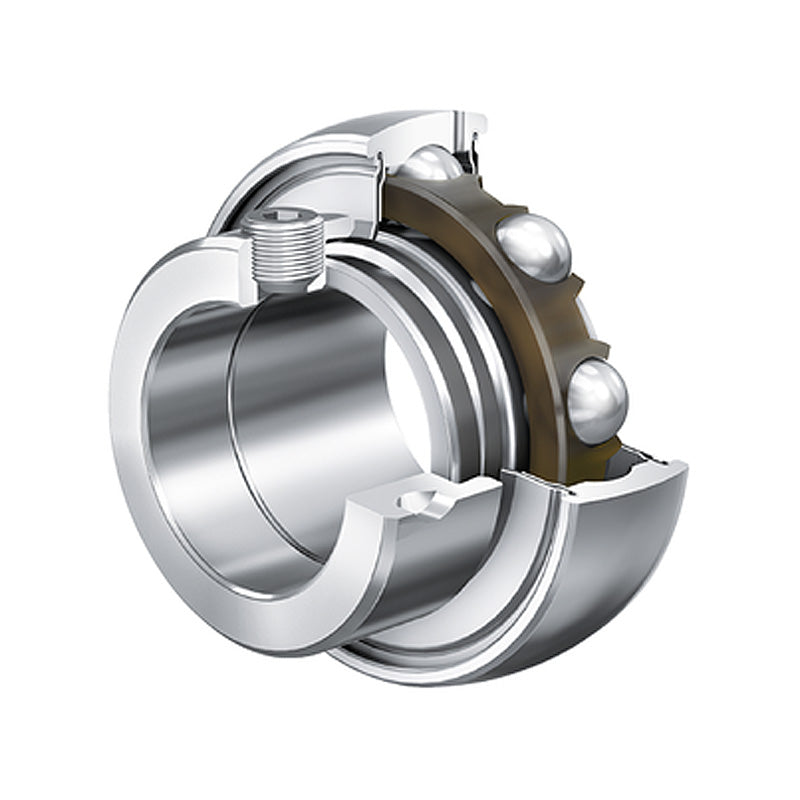

INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
62mm
Width:
35.8mm
Technical
d 1-1/8 inch
d 28.58mm
Dsp 2.4409 inch
Dsp 62mm
B1 1.4090 inch
B1 35.8mm
B 0.937 inch
C 0.709 inch
Ca 0.185 inch
d2 1.472 inch
d3 1.732 inch
S 0.354 inch
W 5/32 inch
Dynamic load Cr 4350 lbf
Dynamic load Cr 19500 N
Static load C0r 2550 lbf
Static load C0r 11300 N
Weight 0.68 lbs
