• INA GRA104NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x72x39mm
  • INA
1 2

SKU: GRA104-NPP-B-AS2/V-INA

INA GRA104NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x72x39mm

INA GRA104NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x72x39mm
$43.21 ex VAT
$43.21 ex VAT
Sale Sold out

In stock

Price Break
3+ $28.94
5+ $27.32
10+ $26.99
15+ $26.67
20+ $26.34
30+ $26.02
40+ $24.39
50+ $24.06
60+ $23.74
75+ $23.41
100+ $22.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

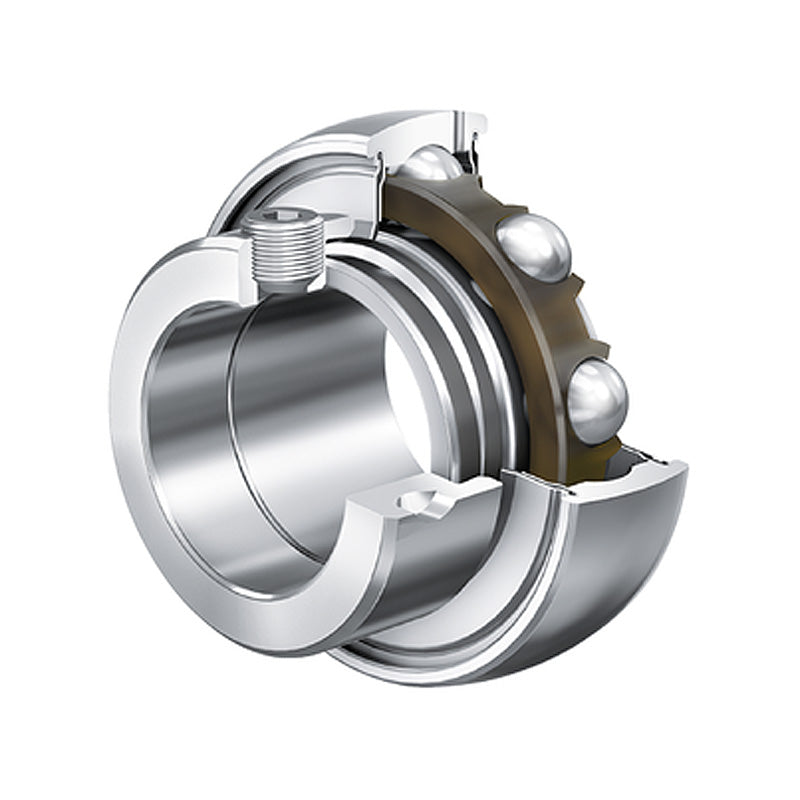

INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
72mm
Width:
39mm
Technical
d 1-1/4 inch
d 31.75mm
Dsp 2.8346 inch
Dsp 72mm
B1 1.5350 inch
B1 39mm
B 1 inch
C 0.748 inch
Ca 0.22 inch
d2 1.756 inch
d3 2.008 inch
S 0.374 inch
W 3/16 inch
Dynamic load Cr 5800 lbf
Dynamic load Cr 25500 N
Static load C0r 3450 lbf
Static load C0r 15300 N
Weight 1.1 lbs
