SKU: GRA203-NPP-B-AS2/V-INA

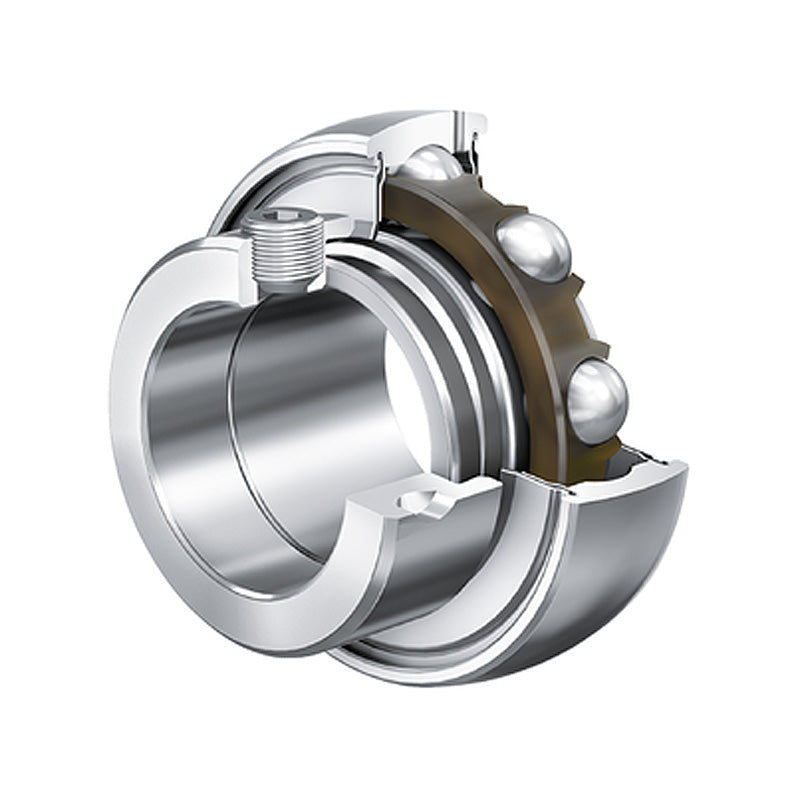

INA GRA203NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 55.56x100x48.4mm
INA GRA203NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 55.56x100x48.4mm
Out of stock
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 100mm
- Width:
- 48.4mm
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| d | 55.56mm |
| Dsp | 3.9370 inch |
| Dsp | 100mm |
| B1 | 1.9060 inch |
| B1 | 48.4mm |
| B | 1.28 inch |
| C | 0.984 inch |
| Ca | 0.276 inch |
| d2 | 2.598 inch |
| d3 | 2.992 inch |
| S | 0.472 inch |
| W | 3/16 inch |
| Dynamic load Cr | 9800 lbf |
| Dynamic load Cr | 43500 N |
| Static load C0r | 6500 lbf |
| Static load C0r | 29000 N |
| Weight | 1.78 lbs |
