SKU: GRA207-NPP-B-AS2/V-INA

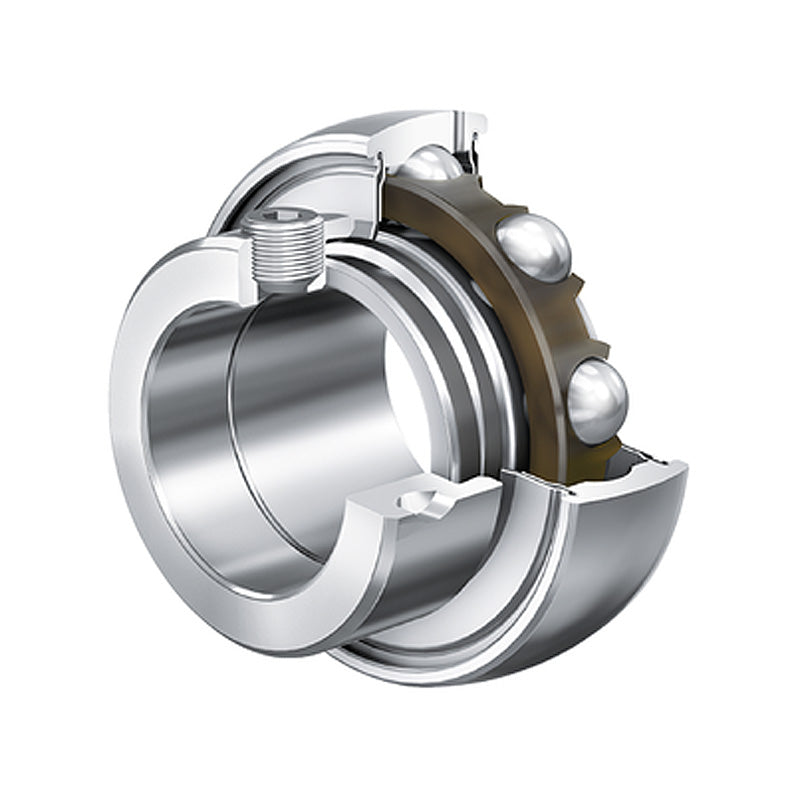

INA GRA207NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 61.91x110x53.1mm
INA GRA207NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 61.91x110x53.1mm
Out of stock
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Width:
- 53.1mm
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| d | 61.91mm |
| Dsp | 4.3307 inch |
| Dsp | 110mm |
| B1 | 2.0910 inch |
| B1 | 53.1mm |
| B | 1.461 inch |
| C | 0.945 inch |
| Ca | 0.283 inch |
| d2 | 2.835 inch |
| d3 | 3.307 inch |
| S | 0.531 inch |
| W | 3/16 inch |
| Dynamic load Cr | 11700 lbf |
| Dynamic load Cr | 52000 N |
| Static load C0r | 8100 lbf |
| Static load C0r | 36000 N |
| Weight | 3.08 lbs |
