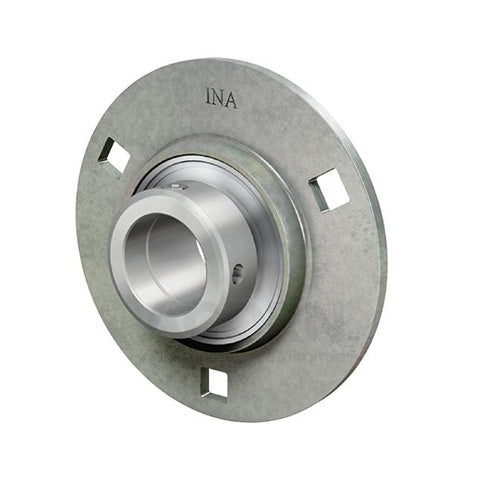

• INA GRA25XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: GRA25-XL-INA

INA GRA25XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 25mm Bore

INA GRA25XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 25mm Bore
$35.41 ex VAT
$35.41 ex VAT
Sale Sold out

In stock

Price Break
4+ $23.72
9+ $22.39
19+ $22.12
29+ $21.85
39+ $21.59
49+ $21.32
59+ $19.99
69+ $19.72
79+ $19.45
89+ $19.19
99+ $18.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
GRA
Pitch Circle Diameter:
76mm
Technical
d 25mm
H 95mm
B1 31mm
A 8.7mm
d3 max 37.5mm
J 76mm
N 8.7mm
Number of screw holes 3
S 2mm
U 25.5mm
V 60
Mass 0.37 kg
Load carrying capacity of housing Cor G 3650 N
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing FLAN52-MSB (1 X) / FLAN52-MSA (1 X)
Designation of bearing GRAE25-XL-NPP-B
