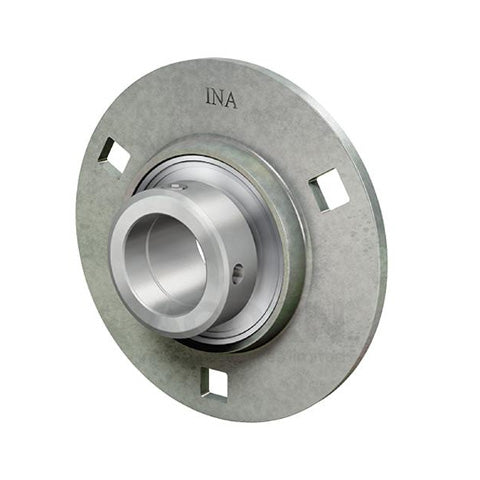

• INA GRA35XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 35mm Bore
  • INA
1 2

SKU: GRA35-XL-INA

INA GRA35XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 35mm Bore

INA GRA35XL Three Bolt Sheet Steel Round Housing with Eccentric Collar Insert 35mm Bore
$52.23 ex VAT
$52.23 ex VAT
Sale Sold out

In stock

Price Break
4+ $34.99
9+ $33.02
19+ $32.63
29+ $32.23
39+ $31.84
49+ $31.45
59+ $29.48
69+ $29.09
79+ $28.70
89+ $28.30
99+ $27.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
GRA
Pitch Circle Diameter:
100mm
Technical
d 35mm
H 122mm
B1 39mm
A 9.5mm
d3 max 55mm
J 100mm
N 10.5mm
Number of screw holes 3
S 2.5mm
U 32mm
V 81
Mass 0.82 kg
Load carrying capacity of housing Cor G 6400 N
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing FLAN72-MSB (1 X) / FLAN72-MSA (1 X)
Designation of bearing GRAE35-XL-NPP-B
