• INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
  • INA
1 2

SKU: GRAE20-NPP-B-FA125.5-INA

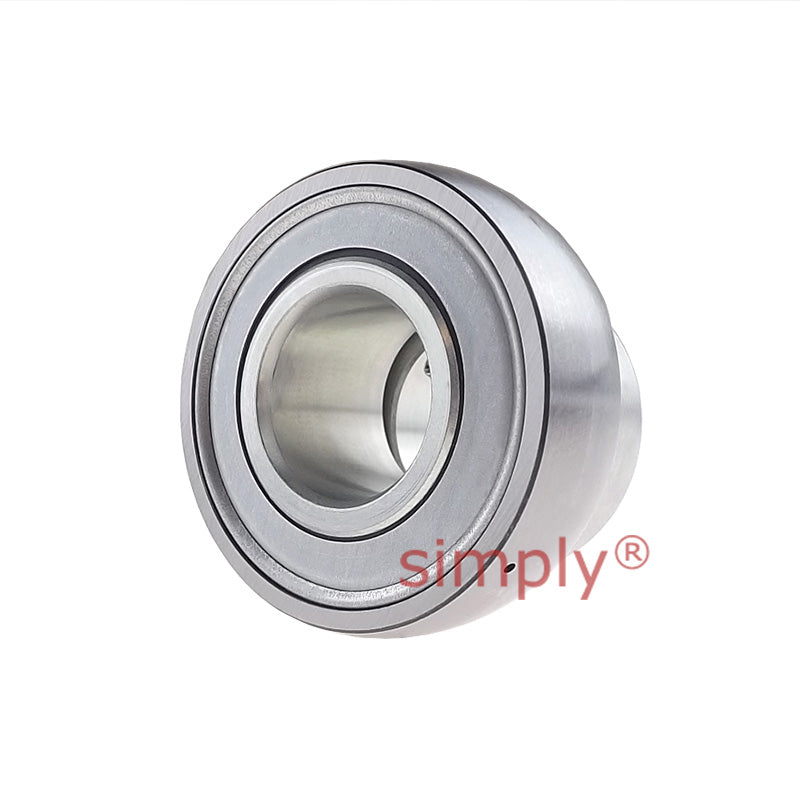

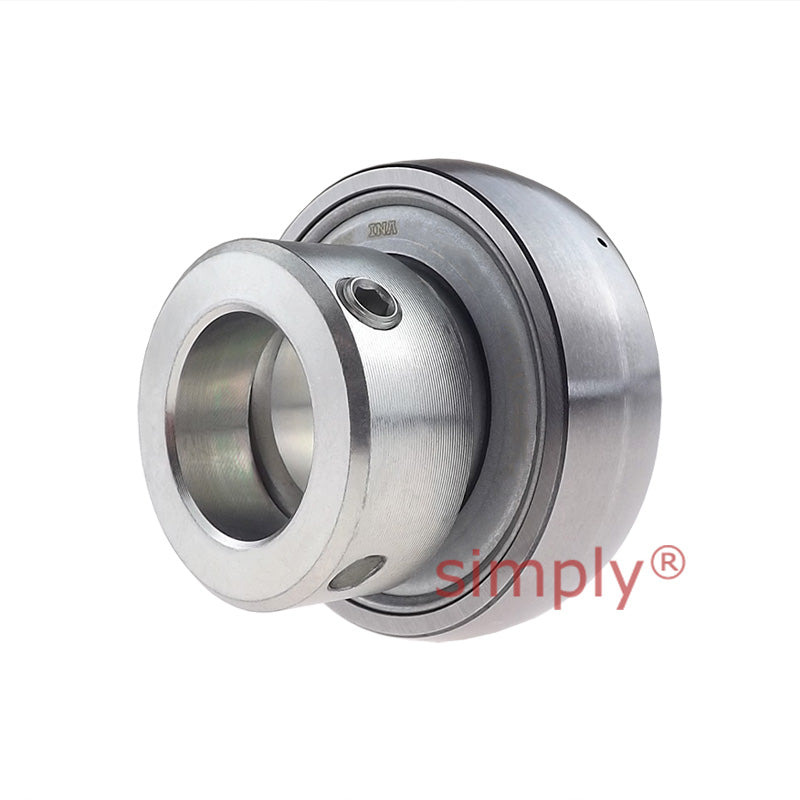

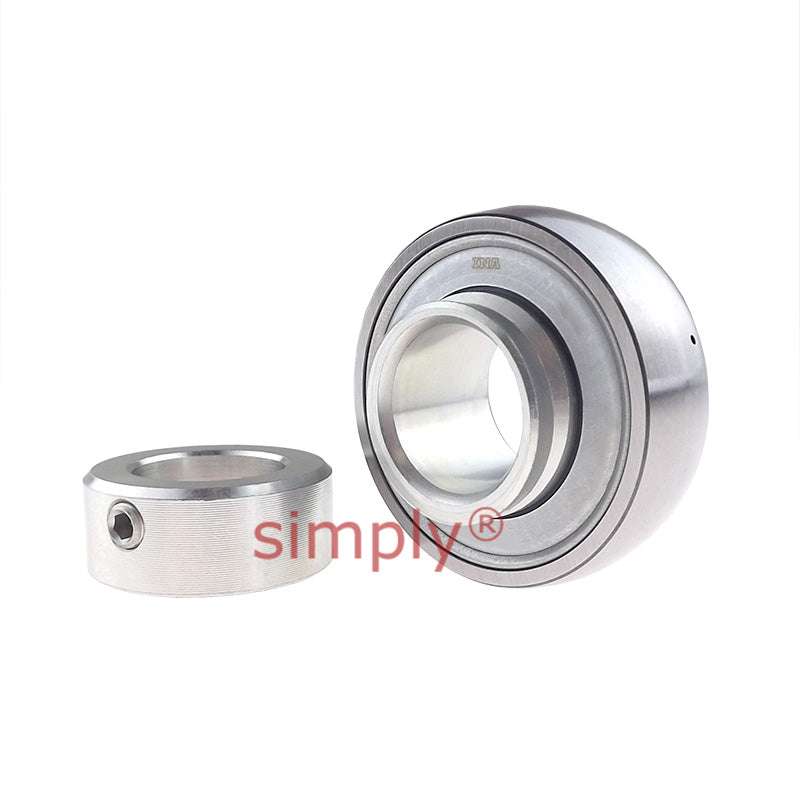

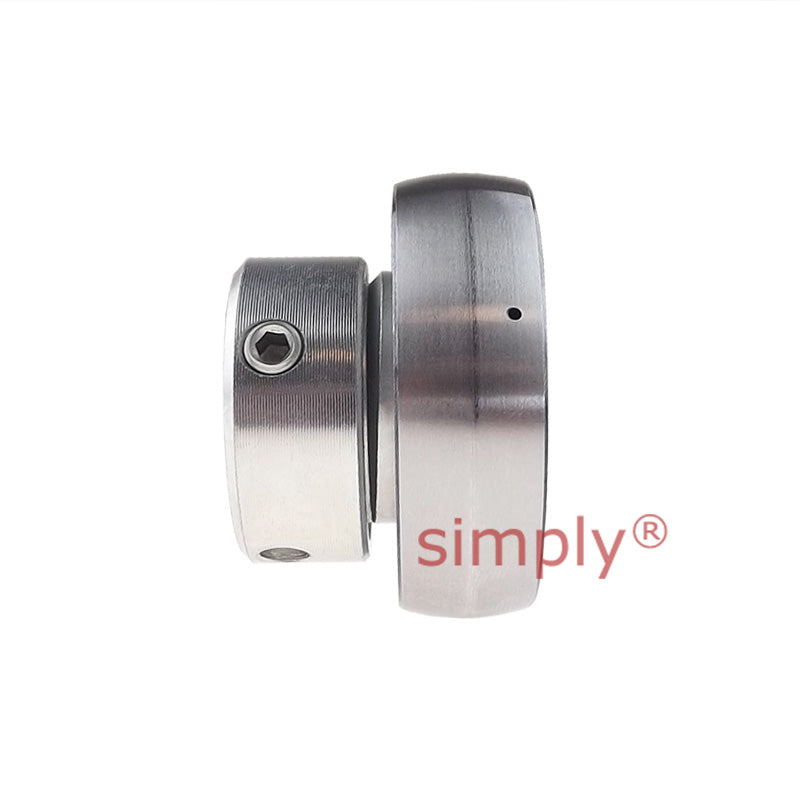

INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm

INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
$33.79 ex VAT
$33.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.63
5+ $21.36
10+ $21.11
15+ $20.85
20+ $20.60
30+ $20.34
40+ $19.07
50+ $18.82
60+ $18.56
75+ $18.31
100+ $17.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

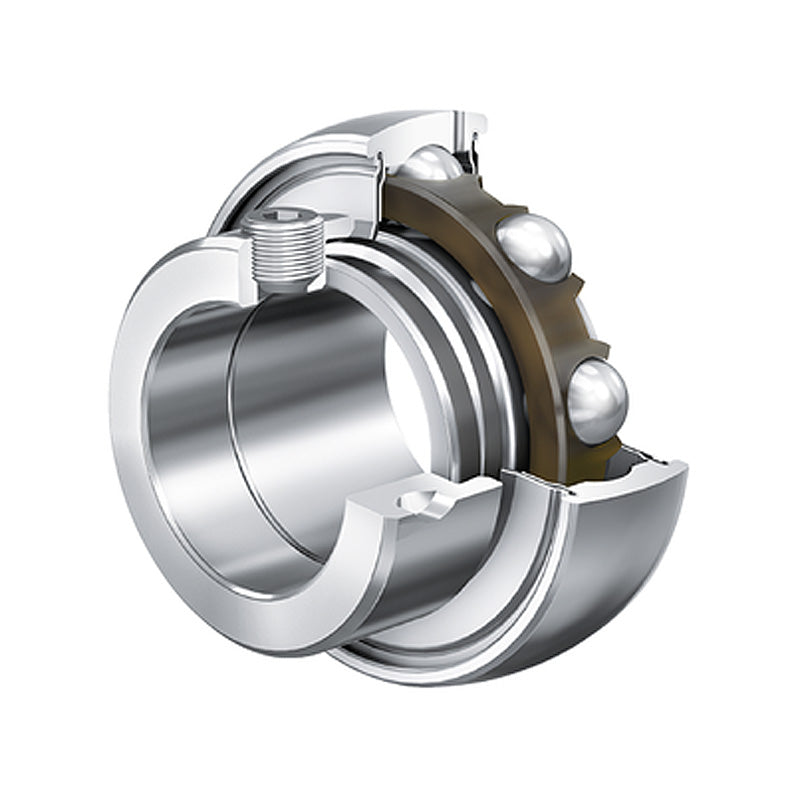

INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
31mm
Technical
d 20mm
Dsp 47mm
B1 31mm
B 21.4mm
C 14mm
Ca 4mm
d2 26.9mm
d3 max 33mm
S 7.5mm
W 3mm
Dynamic load Cr 12800 N
Static load C0r 6600 N
Weight 0.16 kg
