• INA GRAE25-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 25x52x31mm
  • INA
1 2

SKU: GRAE25-NPP-B-FA125.5-INA

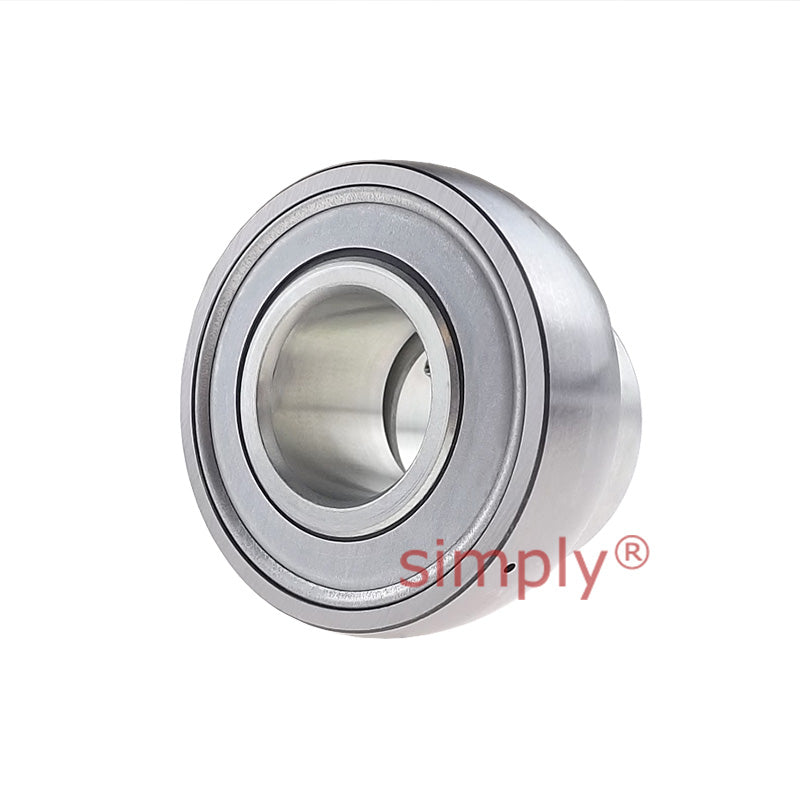

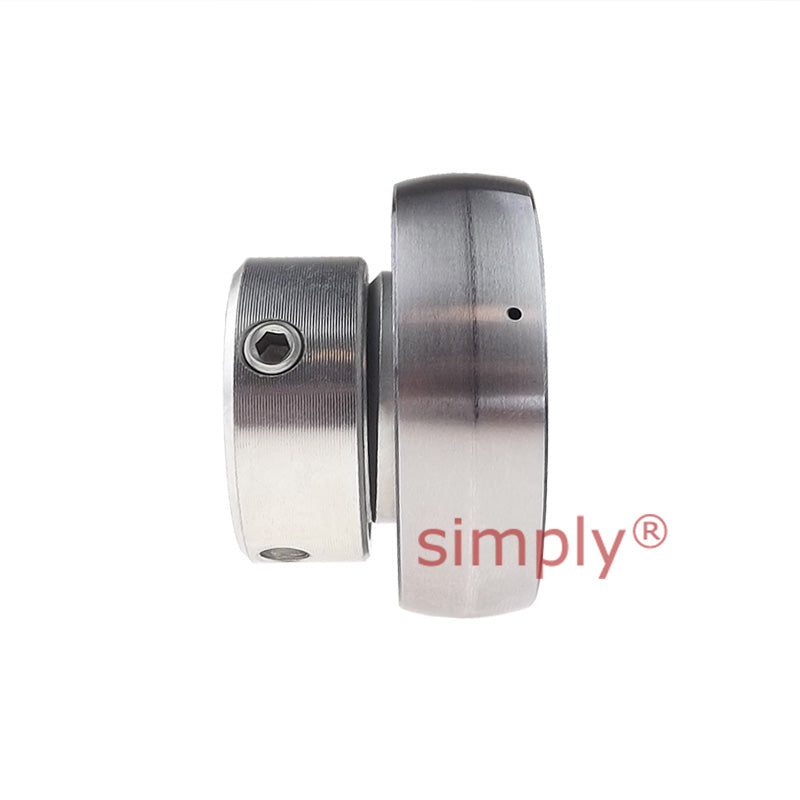

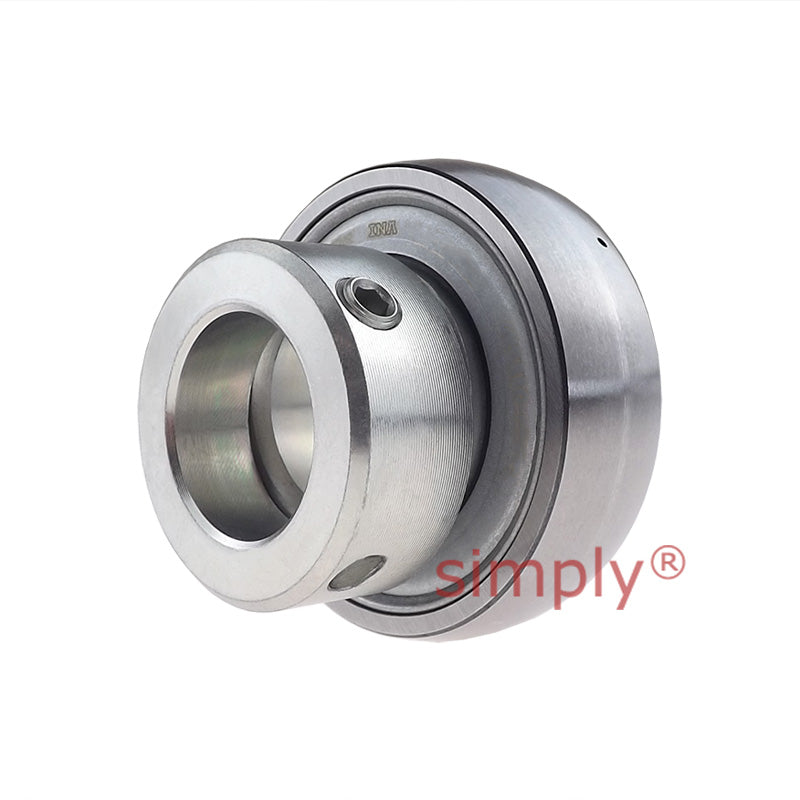

INA GRAE25-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 25x52x31mm

INA GRAE25-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 25x52x31mm
$36.55 ex VAT
$36.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.48
5+ $23.11
10+ $22.83
15+ $22.56
20+ $22.28
30+ $22.01
40+ $20.63
50+ $20.36
60+ $20.08
75+ $19.81
100+ $19.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

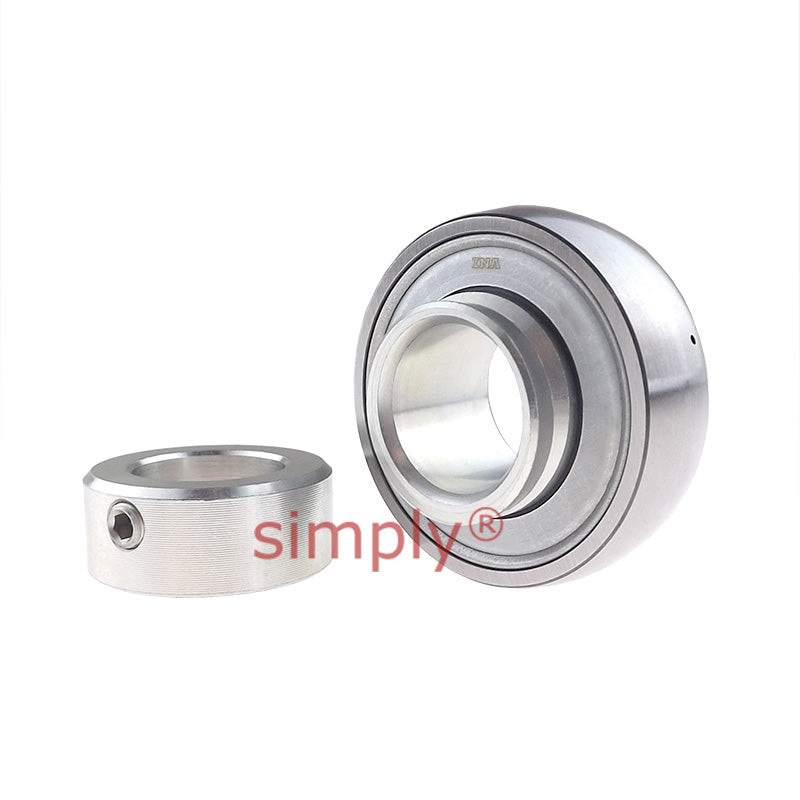

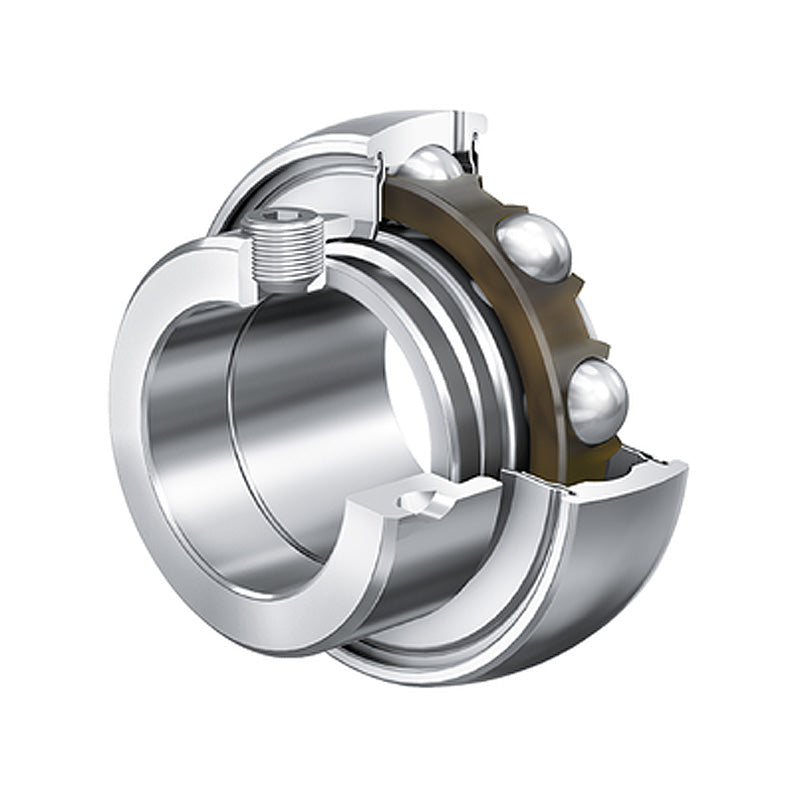

INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
31mm
Technical
d 25mm
Dsp 52mm
B1 31mm
B 21.4mm
C 15mm
Ca 3.9mm
d2 30.5mm
d3 max 37.5mm
S 7.5mm
W 3mm
Dynamic load Cr 14000 N
Static load C0r 7800 N
Weight 0.19 kg
