• INA GRAE45-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 45x85x43.8mm
  • INA
1 2

SKU: GRAE45-NPP-B-FA125.5-INA

INA GRAE45-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 45x85x43.8mm

INA GRAE45-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 45x85x43.8mm
$76.64 ex VAT
$76.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $51.34
5+ $48.45
10+ $47.87
15+ $47.30
20+ $46.72
30+ $46.14
40+ $43.26
50+ $42.68
60+ $42.11
75+ $41.53
100+ $40.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

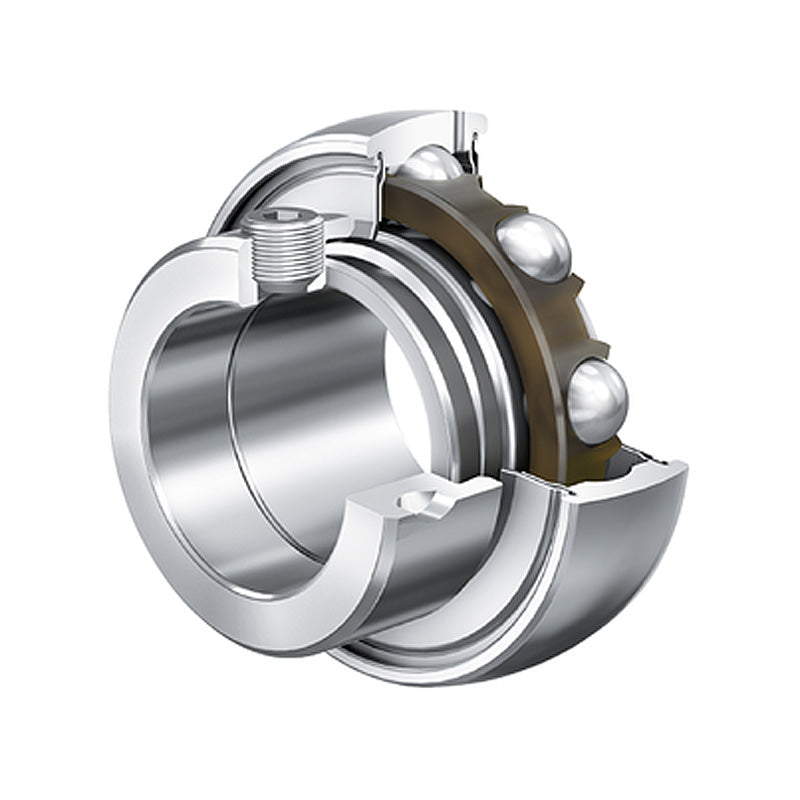

INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
43.8mm
Technical
d 45mm
Dsp 85mm
B1 43.8mm
B 30.2mm
C 22mm
Ca 6.4mm
d2 54.3mm
d3 max 63mm
S 11mm
W 5mm
Dynamic load Cr 32500 N
Static load C0r 20400 N
Weight 0.69 kg
