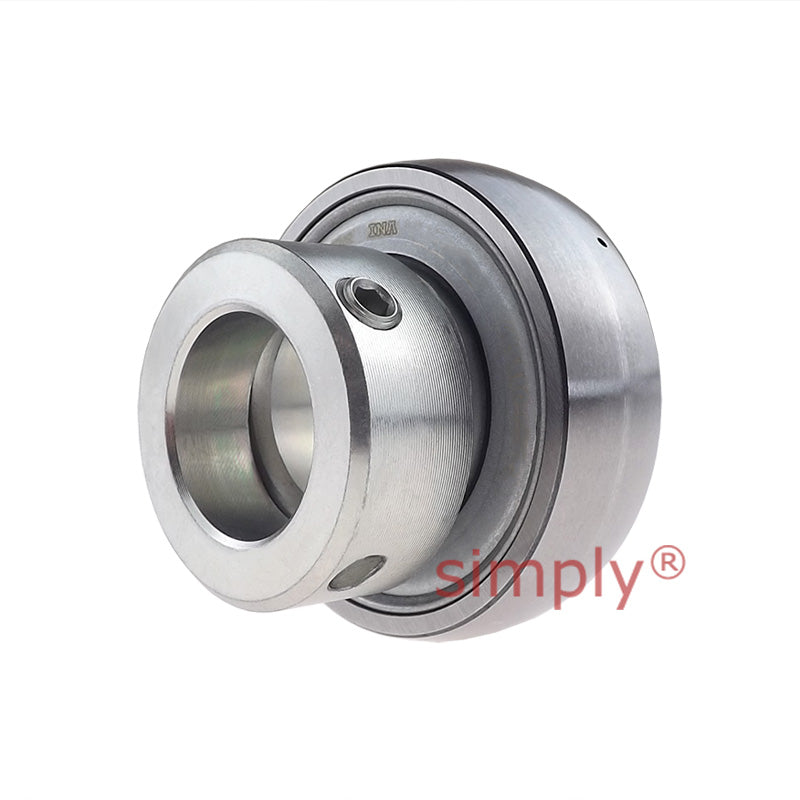

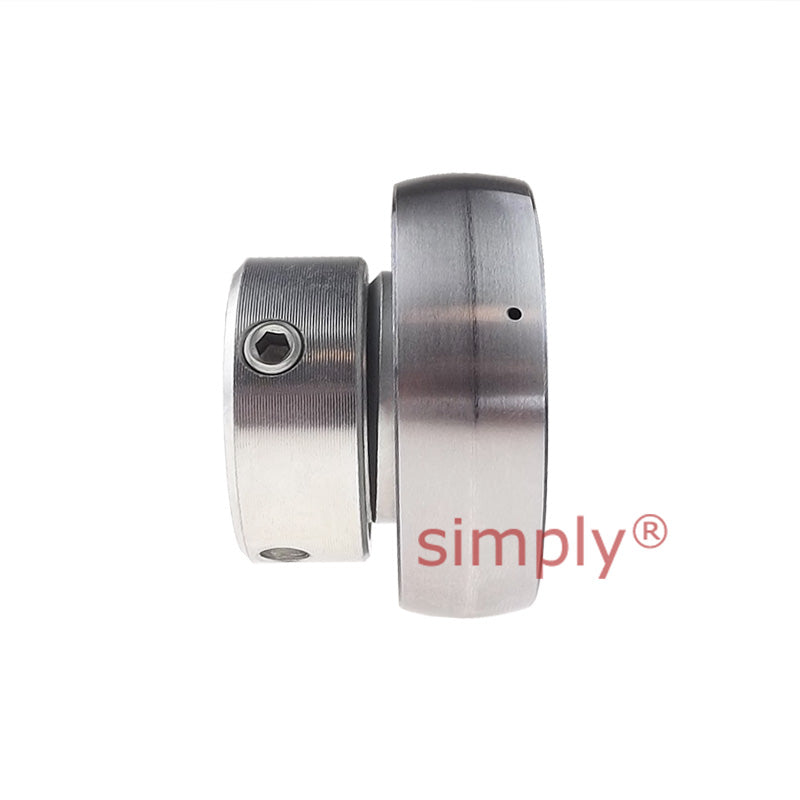

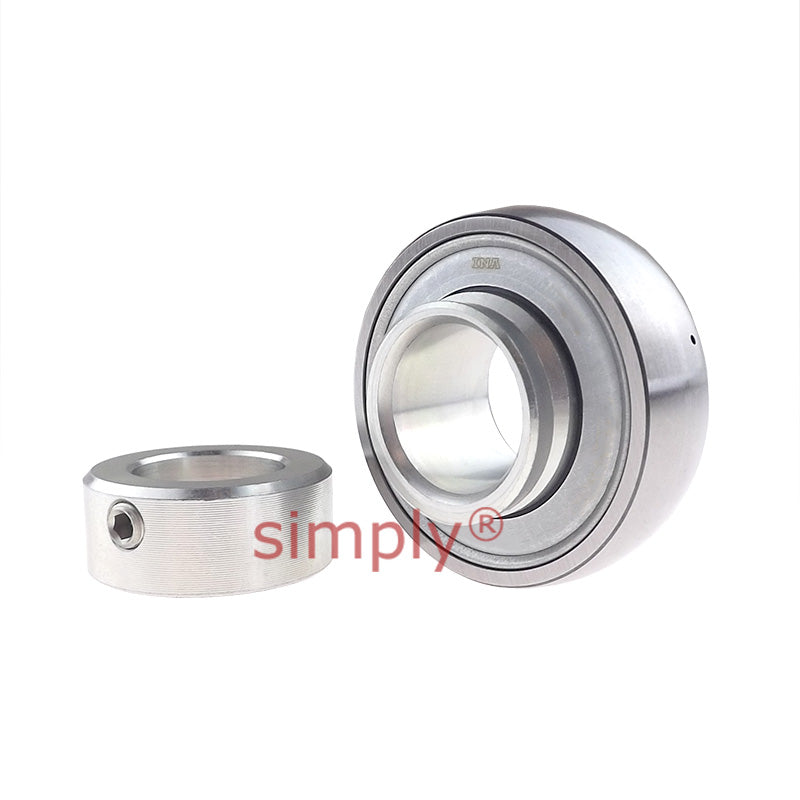

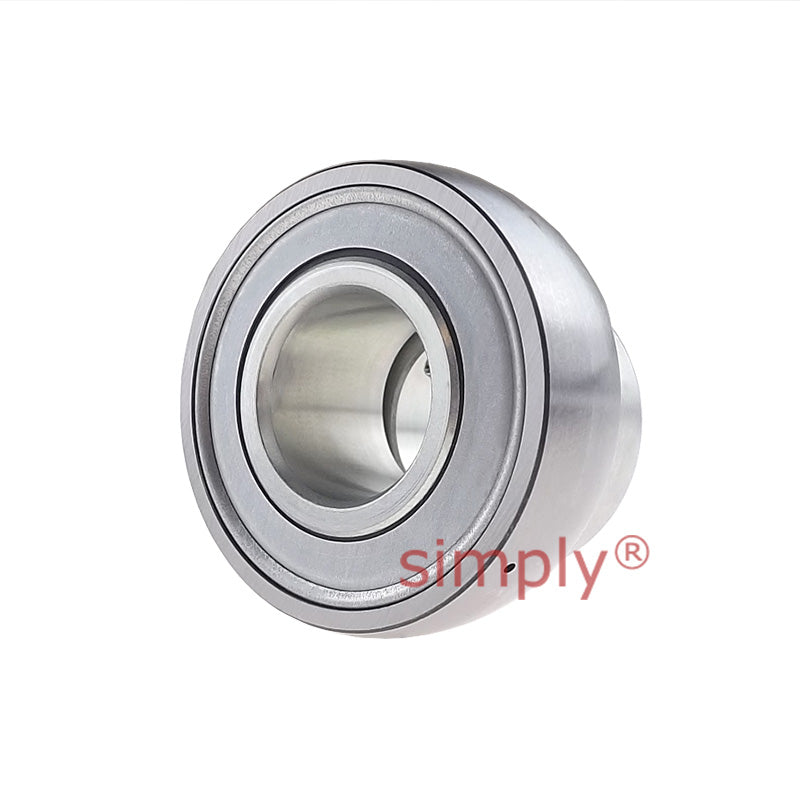

INA GRAE50-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 50x90x43.8mm
INA GRAE50-XL-NPP-B-FA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 50x90x43.8mm
Regular price
$82.86
ex VAT
Regular price
Sale price
$82.86
ex VAT
In stock
Price Break
3+
$55.50
5+
$52.38
10+
$51.76
15+
$51.14
20+
$50.51
30+
$49.89
40+
$46.77
50+
$46.15
60+
$45.52
75+
$44.90
100+
$43.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

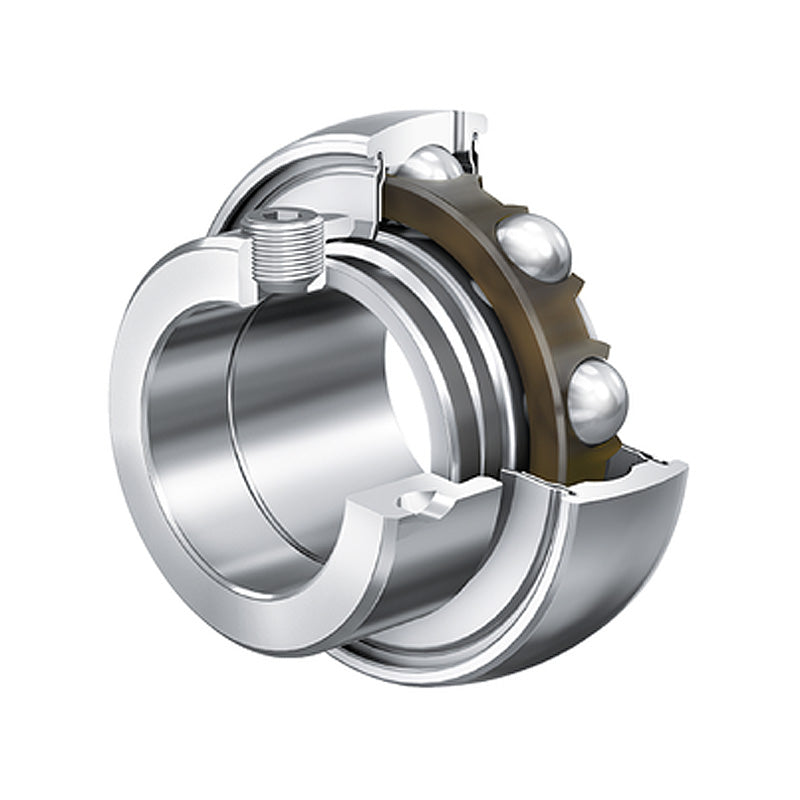

INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 43.8mm
Technical
Technical
| d | 50mm |
|---|---|
| Dsp | 90mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 22mm |
| Ca | 6.9mm |
| d2 | 59.4mm |
| d3 max | 69mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 0.77 kg |
