SKU: GSH30-2RSR-B-INA

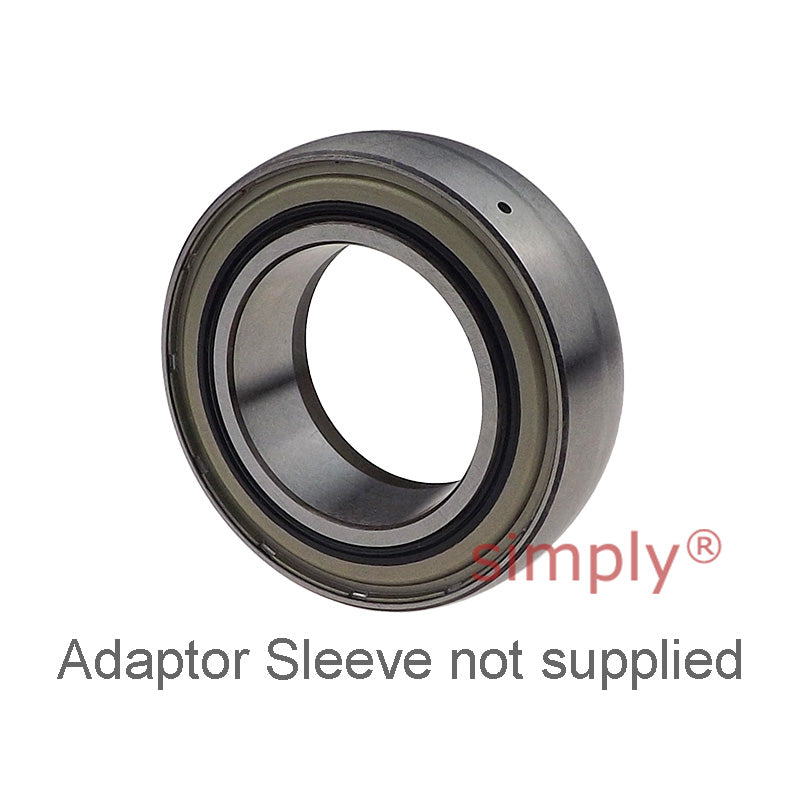

INA GSH30XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals 30x62x32mm (Adaptor Sleeve Sold Separately)
INA GSH30XL2RSRB Metric Spherical Outer Bearing Insert with RSR Seals 30x62x32mm (Adaptor Sleeve Sold Separately)
Regular price
$62.48
ex VAT
Regular price
Sale price
$62.48
ex VAT
In stock
Price Break
3+
$41.85
5+
$39.50
10+
$39.03
15+
$38.56
20+
$38.09
30+
$37.62
40+
$35.27
50+
$34.79
60+
$34.32
75+
$33.85
100+
$32.91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA GSH..-2RSR-B Series Inserts: Bearing insert with spherical outer race and RSR seals. The inner ring is located on the shaft by an adaptor sleeve with a locknut and a tab washer. The adaptor sleeve and locknut give concentric, force locking location of the bearing inner ring on the shaft. This results in speeds that can be achieved the same as with deep groove ball bearings. These bearings also give quieter running than normal radial insert ball bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C Benefits: Can be re-lubricated, quieter running than normal bearing inserts, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 32mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 32mm |
| B | 18mm |
| C | 18mm |
| Ca | 4.7mm |
| S | 9mm |
| Weight | 0.27 kg |
| Dynamic load Cr | 18900 N |
| Static load | 11600 N |
| Limiting speed | 6600 rpm |
