• INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
  • INA
1 2

SKU: GVK102-208-KTT-B-AH10-AS2/V-INA

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
$101.84 ex VAT
$101.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $68.22
5+ $64.39
10+ $63.62
15+ $62.85
20+ $62.09
30+ $61.32
40+ $57.49
50+ $56.72
60+ $55.95
75+ $55.19
100+ $53.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

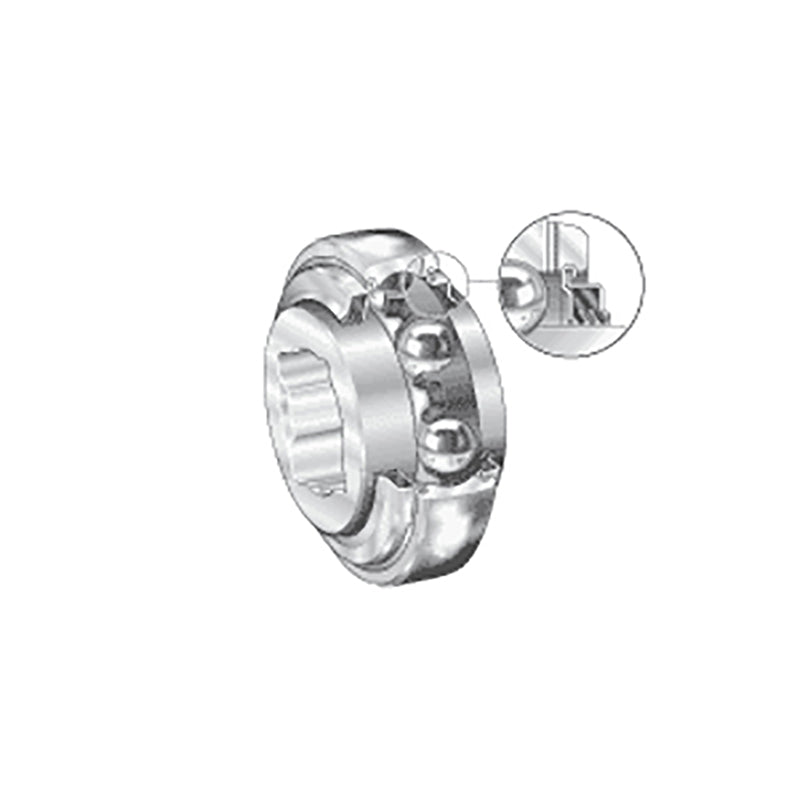

INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
Brand / Quality:
INA - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
80mm
Width:
36.5mm
Seals / Shields:
Rubber Sealed
Technical
d 28.58mm
d 1-1/8 inch
Tolerance +0.9 / +0.6
Dsp 80mm
B 36.5mm
C 18mm
C2 25.3mm
Ca 5.8mm
D1 68.3mm
d1 52.3mm
F 41.3mm
r 2.5mm
Limiting speed nG Fett 500 rpm
Dynamic load Cr 32500 N
Static load C0r 19800 N
Weight 0.68 kg
